Next Generation Flex Series Controller -
Flex-X Nano

This product has been replaced with Flex-6X Nano

P660 (2 Axis) | P661 (4 Axis) | P662 (8 Axis) | P663 (16 Axis) | P664 (32 Axis) | P665 (64 Axis)

Not recommended for new projects!


Powerful, compact and flexible, the Flex-X Nano improves on the performance of the best selling Flex-6 Nano.

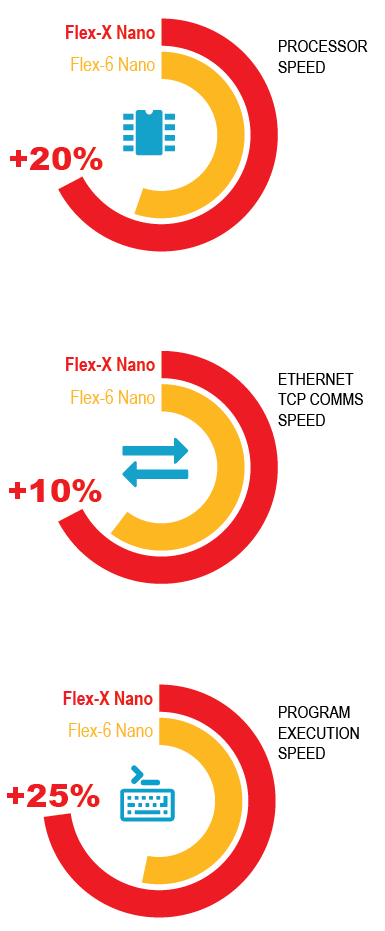

X-tra processor performance, X-tra comms speed and X-tra program execution speed makes the Flex-X Nano the choice for your compact EtherCAT controller

The Flex-X nano EtherCAT solution offers up to 64 Axes of motion and is expandable through the matching Flexslice range of Input, Output and Axis modules.

Highlights

  • 1.2 GHz, 64 Bit Dual Core ARM Cortex A55 Processor
  • 2 - 64 Axes
  • 1 GBit DDR3 Memory
  • Memory can be Expanded with a Micro SD Card
  • 1 GBit Fast Serial Flash Memory to Store Data Such as Programs, VRs and Tables
  • Built in Retention RTC
  • Built in EBUS Coupler for Direct Access to Trio’s Flexslice Slaves
  • Cycle Time as Low as 125us!
  • Field Programmable with Motion Perfect
  • High Performance, Flexible Topology and Simple Configuration
  • Bus Cycle Time Synchronised with Motion Coordinator Servo Period
  • Ethercat Protocol to Individual Modules Using the EBUS System
  • I/O Functions Tightly Synchronised to Motion Using Ethercat Distributed Clocks
  • Practical Push-In Connector Options – No Break Out Required
  • Clip-Together Design With ‘Quick Release’ Locks For Mechanical Integrity
EtherCAT logo
Performance Efficient

More Axes Please!

The P660 has 2 built-in EtherCAT axes which can be user upgraded with the purchase of P912 Remote Axis FECs. Up to 64 axes are supported using CSP, CSV and CST modes of operation.

Each P912 doubles the available axes, i.e:

P660 + 1 x P912 = 4 Remote Axes
P660 + 2 x P912 = 8 Remote Axes
P660 + 3 x P912 = 16 Remote Axes
P660 + 4 x P912 = 32 Remote Axes
P660 + 5 x P912 = 64 Remote Axes

Of course, the Flex-X Nano can be purchased with axes factory loaded ie:

P660 = 2 Axes
P661 = 4 Axes
P662 = 8 Axes
P663 = 16 Axes
P664 = 32 Axes
P665 = 64 Axes

Design Efficient

Fast and Flexible

Trio’s Flexslice input/output modules provide a robust, high speed and flexible solution for both motion control and general automation. EtherCAT cycle times down to 125μsecs are supported and the bus coupler uses EBUS technology to bring all the sub-modules on to the EtherCAT network with no degradation in performance.

EtherCAT slave nodes (Flexslice Modules) are connected via the Flexslice EBUS and the EtherCAT connector. Total slave connections can be up to 128 nodes including I/O and complex devices.

Flex-X Nano
Integration Efficiency

Expanding the System

More "stations" (EtherCAT linked blocks of Flexslice Modules) can be added to the network using the second EtherCAT port on the P660 to connect to one or more P366 Flexslice Couplers.

Flex-X Nano

All in one Solution

The Flex-X Nano can be used as a stand-alone controller or can "plug" straight into our EtherCAT Flexslice System allowing expansion of the system to include servo and stepper drives, I/O and other functionality that conforms to the EtherCAT standard.
Product P660
Flex-6X Nano
Description 64 axis DIN rail mounted motion coordinator for EtherCAT
Name Flex-6X Nano
PCode P660
Status Current
Configuration P660
Flex-6X Nano
Axis 0
Axis 1
Axis 2
Axis 3
Axis 4
Axis 5
Axis 6
Axis 7
Axes P660
Flex-6X Nano
Max axes 64
Max networked axes 64
Max virtual axes 64
Max discrete wired axes 0
Performance P660
Flex-6X Nano
Cores 2
Processor ARM Cortex A55
Clock frequency 1200 MHz
Maths precision IEEE 457 Double
Position register precision 64 bit
Execution benchmark 125 lines/ms
Real-time clock Yes
Flash memory 32 x 16000 values
User memory 12 MB
Table memory 512000 values
Min expected flash memory life (normal use) 20 years
Maximum VR variables 16384
Maximum servo period 4000 µs
Minimum servo period 125 µs
Maximum encoder input frequency 0.000 MHz
Maximum stepper output frequency 0.000 MHz
Drive interfaces P660
Flex-6X Nano
Auxilliary axis No
EtherCAT Yes
Hydraulic No
Piezo No
Panasonic RTEX No
SERCOS No
Servo No
SLM No
Step & direction No
Communications P660
Flex-6X Nano
Anybus No
Bluetooth No
CANopen No
CC-Link No
DeviceNet No
Ethernet Yes
EthernetIP Yes
Hostlink No
MODBUS-RTU No
MODBUS-TCP/IP Yes
Profibus No
ProfiNet Yes
RS232/RS485 No
USB 1.1 No
Encoder ports P660
Flex-6X Nano
Feedback input No
Incremental (A+B) output No
Pulse & direction output No
Reference input No
SSI Absolute Input No
EnDat Absolute Input No
Tamagawa Absolute Input No
BiSS Absolute Input No
Internal I/O P660
Flex-6X Nano
+/-10V analogue outputs 0
Analogue output precision 12 bits
Analogue Inputs (0-10V) 0
Analog input precision 12 bits
Digital Bidirectional I/O (24V) 0
Digital Inputs (24Vdc) 0
Digital outputs (24Vdc) 0
Registration inputs 0
Registration speed 0 µs
Watchdogs 0
Watchdog rating n/a
External I/O P660
Flex-6X Nano
+/-10V analogue outputs 16
Analogue output precision 12 bits
+/-10V analogue inputs 32
Analogue input precision 12 bits
Digital I/O points 1024
Programming P660
Flex-6X Nano
Trio BASIC Yes
DXF in Yes
G-Code Yes
HPGL Yes
IEC61131 Yes
Kinematic Option
Maximum programs 192
Maximum tasks 22
Software P660
Flex-6X Nano
Motion Perfect version 4
Expansion P660
Flex-6X Nano
Expansion module type None
Maximum modules 0
Memory card Micro SD
Physical P660
Flex-6X Nano
Maximum operating temperature 45 °C
Minimum operating temperature 0 °C
Mount DIN
Depth 107.0 mm
Height 147.0 mm
Width 17.0 mm
Weight 160 g
Power P660
Flex-6X Nano
Supply current 120 mA
Supply tolerance +/- 20%
Supply voltage 24 V
Certification P660
Flex-6X Nano
CE Yes
RoSH Yes
UL Yes
Flex-6X Nano
EtherCAT logo  Specification
Speed 100Mbps
Physical Layer 100BASE-TX full duplex (IEEE 802.3)
Cable Shielded Twisted Pair (TIA/EIA-568B CAT5e)
Topology Line, tree or star (1)
Isolation Pulse transformer with common-mode choke
Connector RJ45
Cable Length 100m max between nodes
Cyclic period 125µsec (Flex-X Nano, Flex-6 Nano, MC6N)
250µsec (MC664-X)
500µsec, 1000µsec, 2000µsec or 4000µsec (MC664, Flex-6 Nano, Flex-X Nano, MC6N)
Synchronisation Distributed Clocks technology.  Jitter < 1 µsec
Protocol CoE, SoE (2)
Number of Axes 32 (MC4N)
64 (MC464+P876)
128 (MC664-X)
64 (PC-MCAT-64, PC-MCAT-2)
64 (Flex-X Nano, Flex-6 Nano, MC6N)
Number of Nodes 128 slave nodes maximum
Motion modes Cyclic Synchronous Position, Cyclic Synchronous Velocity, Cyclic Synchronous Torque
Parameter transfer CoE Object read/write.  SoE IDN read/write
Input/Output Up to 1024 input bits and 1024 output bits

(1) Tree and star require the use of EtherCAT switches.
(2) CanOpen application protocol over EtherCAT. (CoE)
Servo drive profile according to IEC 61491 over EtherCAT. (SoE)
