MC403-X
P865 | P866 | P867

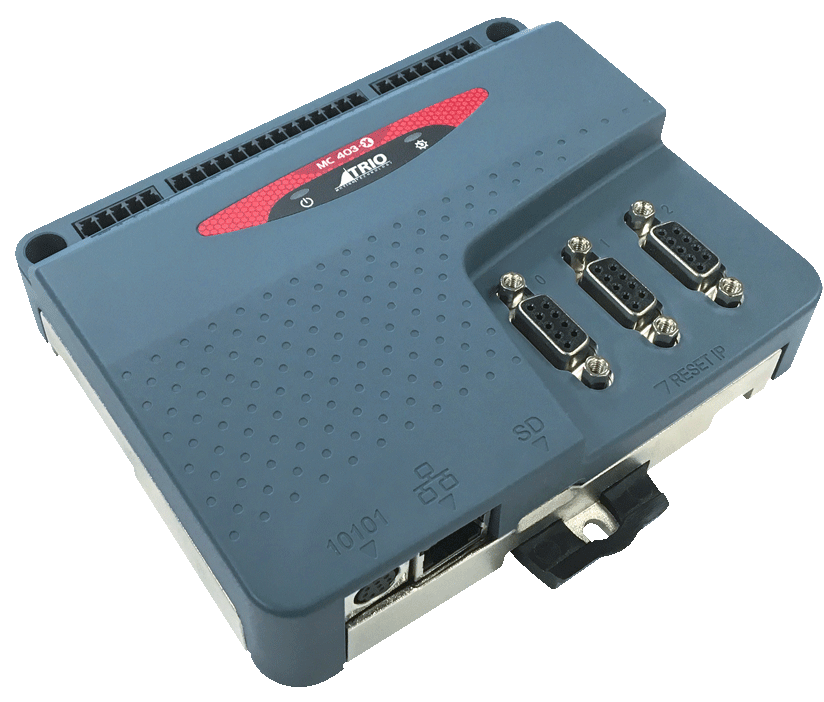

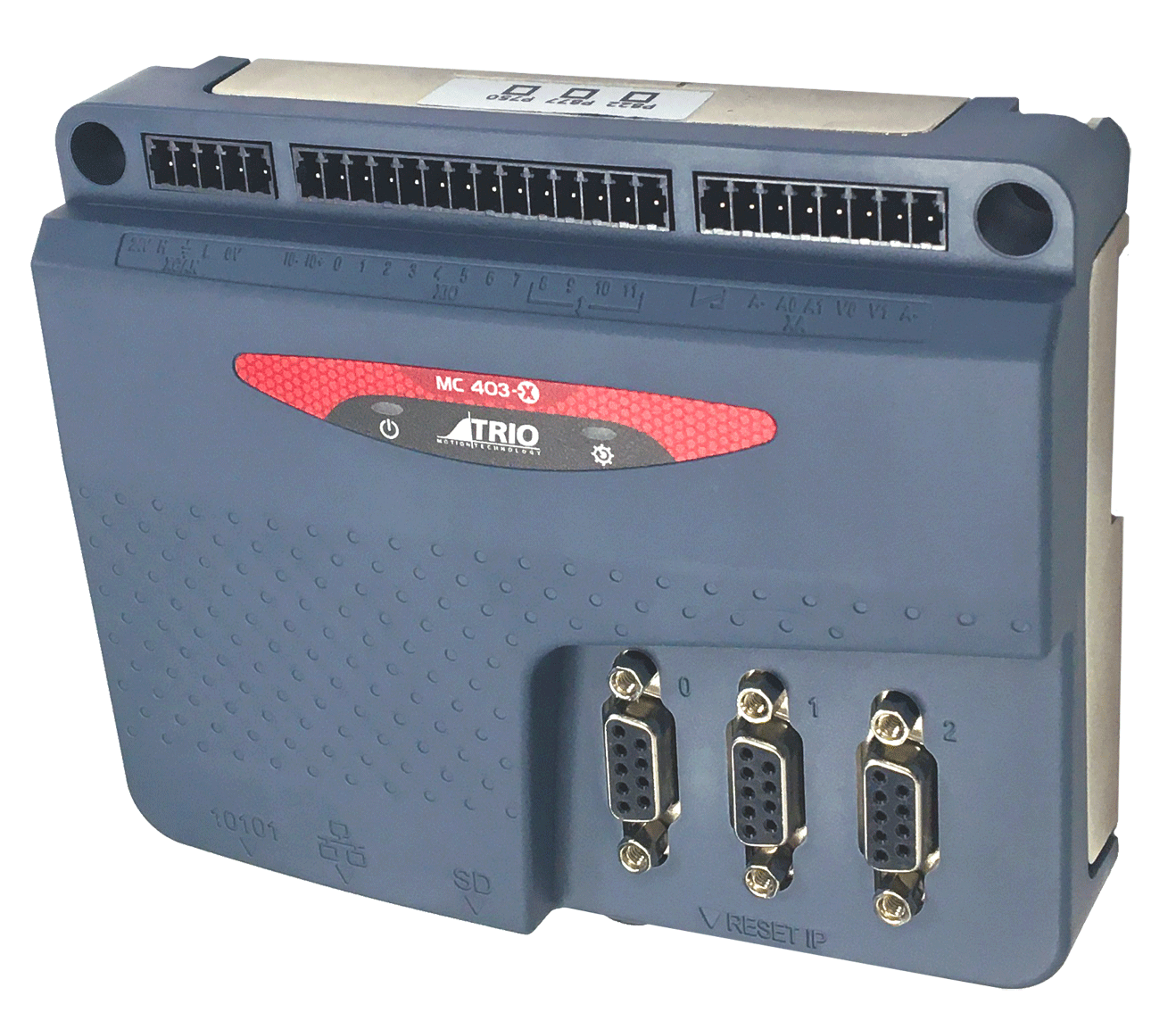

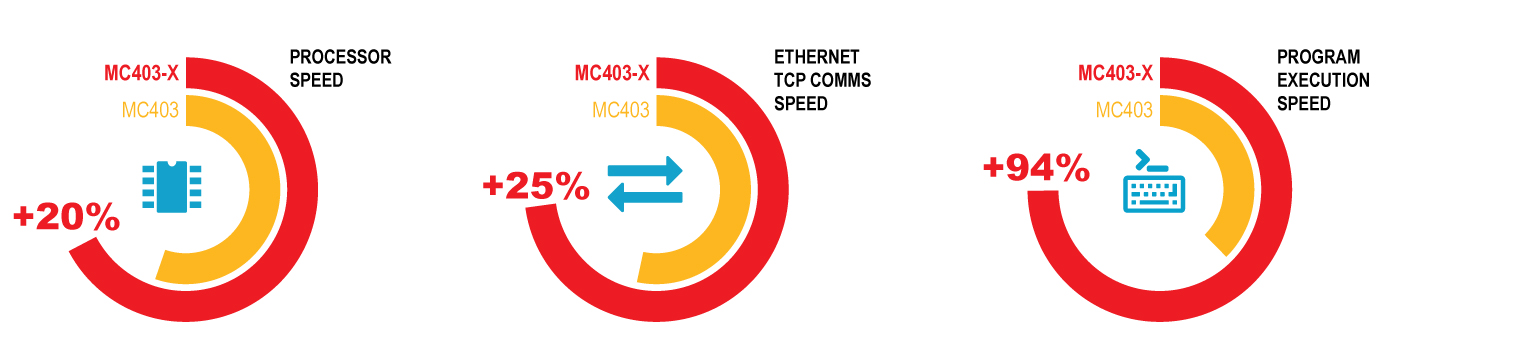

The MC403-X is a panel mount Motion Coordinator using a high performance Cortex M7 processor. With three flexible axis ports and I/O for machine control, it is designed as a direct replacement for the successful MC403.
Highlights
- Advanced 2 Axis Closed Loop Servo / 3 Axis Pulse Direction
- Linear, Circular, Helical and Spherical Interpolation
- Flexible CAM shapes, Linked Motion
- BiSS, EnDAT, Tamagawa and SSI Absolute Encoder Supported
- Hardware Linked Outputs for Camera / Laser Control
- Ethernet-IP / Modbus TCP / Ethernet Interface Built-In
- Real Time Clock
- 125 – 2000µsec Selectable Servo Update
- Precise 64 bit Motion Calculations on Cortex M7 Processor with VFP
- IEC 61131-3 Programming
- Multi-tasking BASIC Programming
- Text File Handling
- Robotic Transformations
- Micro SD Memory Card Slot
- CANopen I/O Expansion
- RoHS, UL Listed, CE approved

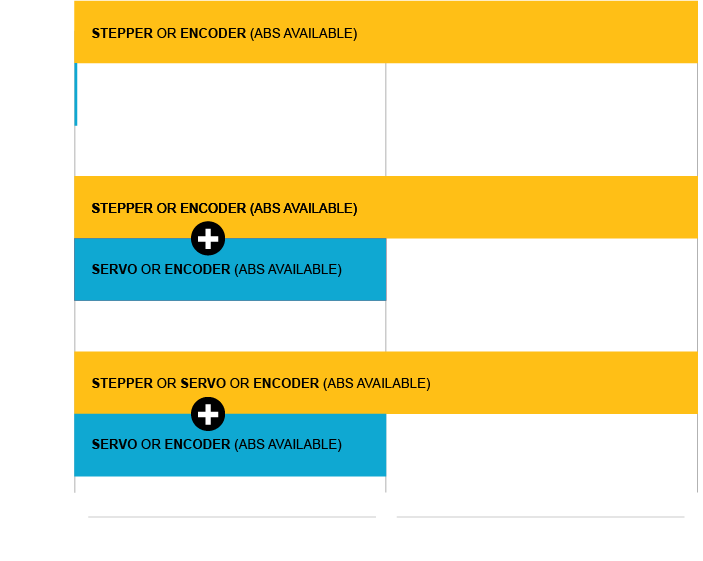

Scalability
The MC403-X is available in three model format options supporting supports a variety of feedback encoder devices including:
Incremental quadrature
Incremental pulse
SSI
EnDat
Tamagawa
BiSS-C
Upgradability
The P865 is upgradable up to the P867 enabling you to add extra functionality by simply purchasing FEC Codes:
P818 - MC403-X Upgrade FEC (P865 to P866)
P819 - MC403-X Upgrade FEC (P866 to P867)
Plug & Program

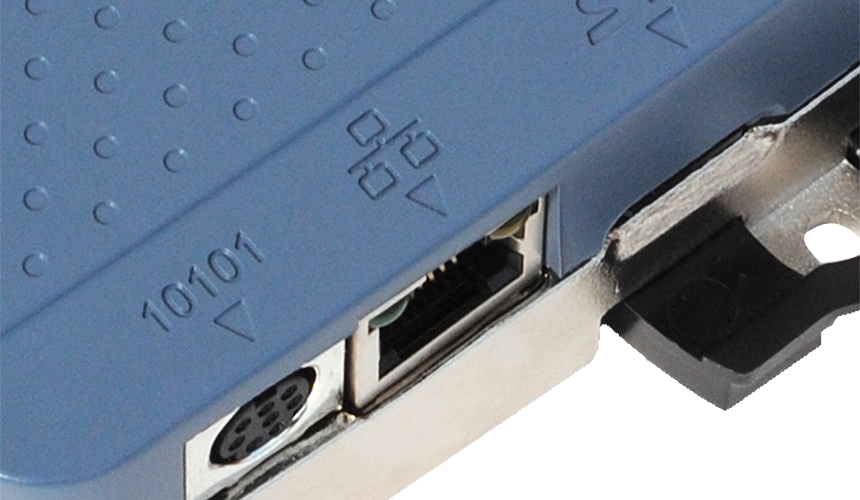

The built-in Ethernet port allows programming and connection of common HMI and PLC protocols directly to the MC403-X. User programs can be written in Trio’s established multi-tasking language using the powerful Motion Perfect application development software making complex motion easy. Also available as an option are the industry standard IEC 61131-3 languages allowing a fully functional PLC programming system.
Connectivity

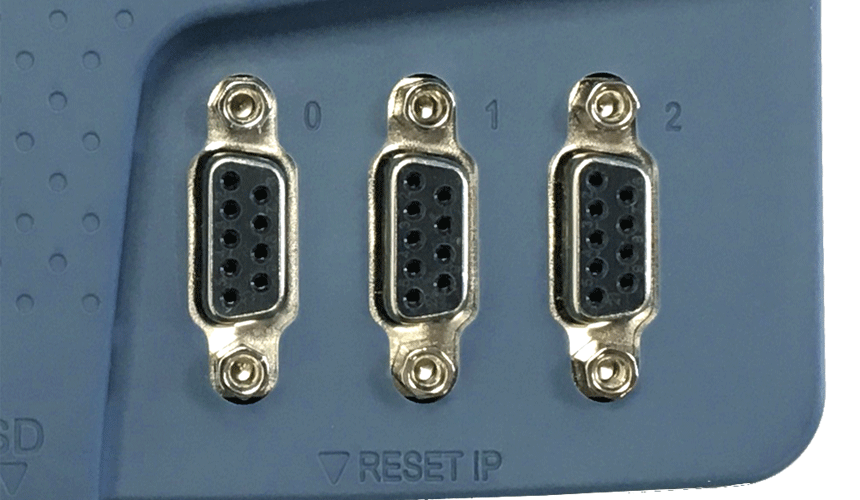

The flexible axis ports can be configured in software as feedback devices or pulse direction outputs. As outputs they can be used as pulse and direction with stepper or servo drives or they can operate as a simulated encoder output. When configured as feedback they can be either incremental encoder input or one of four popular absolute encoder types; SSI, Tamagawa, Endat or Biss. Any feedback axis with a Voltage output can be used to form a closed loop servo.
 |
|
|
|---|
| Product | P865 MC403-X |
P866 MC403-X |
P867 MC403-X |
|---|---|---|---|
| Description | 3 Axis panel mounted Motion Coordinator | 3 Axis panel mounted Motion Coordinator | 3 Axis panel mounted Motion Coordinator |
| Name | MC403-X | MC403-X | MC403-X |
| PCode | P865 | P866 | P867 |
| Status | Current | Current | Current |
| Configuration | P865 MC403-X |
P866 MC403-X |
P867 MC403-X |
|---|---|---|---|
| Axis 0 | Extended | Extended + AS | Extended + AS |
| Axis 1 | Extended | Extended | Extended + AS |
| Axis 2 | Extended | Extended | |
| Axis 3 | |||
| Axis 4 | |||
| Axis 5 | |||
| Axis 6 | |||
| Axis 7 |
| Axes | P865 MC403-X |
P866 MC403-X |
P867 MC403-X |
|---|---|---|---|
| Max axes | 2 | 3 | 3 |
| Max networked axes | 0 | 0 | 0 |
| Max virtual axes | 16 | 16 | 16 |
| Max discrete wired axes | 2 | 3 | 3 |
| Performance | P865 MC403-X |
P866 MC403-X |
P867 MC403-X |
|---|---|---|---|
| Cores | 1 | 1 | 1 |
| Processor | ARM Cortex-M7 | ARM Cortex-M7 | ARM Cortex-M7 |
| Clock frequency | 396 MHz | 396 MHz | 396 MHz |
| Maths precision | IEEE 457 Double | IEEE 457 Double | IEEE 457 Double |
| Position register precision | 64 bit | 64 bit | 64 bit |
| Execution benchmark | 67 lines/ms | 67 lines/ms | 67 lines/ms |
| Real-time clock | Yes | Yes | Yes |
| Flash memory | 32 x 16000 values | 32 x 16000 values | 32 x 16000 values |
| User memory | 4 MB | 4 MB | 4 MB |
| Table memory | 512000 values | 512000 values | 512000 values |
| Min expected flash memory life (normal use) | 20 years | 20 years | 20 years |
| Maximum VR variables | 4096 | 4096 | 4096 |
| Maximum servo period | 4000 µs | 4000 µs | 4000 µs |
| Minimum servo period | 125 µs | 125 µs | 125 µs |
| Maximum encoder input frequency | 6.000 MHz | 6.000 MHz | 6.000 MHz |
| Maximum stepper output frequency | 2.000 MHz | 2.000 MHz | 2.000 MHz |
| Drive interfaces | P865 MC403-X |
P866 MC403-X |
P867 MC403-X |
|---|---|---|---|
| Auxilliary axis | No | No | No |
| EtherCAT | No | No | No |
| Hydraulic | No | No | No |
| Piezo | No | No | No |
| Panasonic RTEX | No | No | No |
| SERCOS | No | No | No |
| Servo | No | Yes | Yes |
| SLM | No | No | No |
| Step & direction | Yes | Yes | Yes |
| Communications | P865 MC403-X |
P866 MC403-X |
P867 MC403-X |
|---|---|---|---|
| Anybus | No | No | No |
| Bluetooth | No | No | No |
| CANopen | Yes | Yes | Yes |
| CC-Link | No | No | No |
| DeviceNet | Yes | Yes | Yes |
| Ethernet | Yes | Yes | Yes |
| EthernetIP | Yes | Yes | Yes |
| Hostlink | Yes | Yes | Yes |
| MODBUS-RTU | Yes | Yes | Yes |
| MODBUS-TCP/IP | Yes | Yes | Yes |
| Profibus | No | No | No |
| ProfiNet | No | No | No |
| RS232/RS485 | Yes | Yes | Yes |
| USB 1.1 | No | No | No |
| Encoder ports | P865 MC403-X |
P866 MC403-X |
P867 MC403-X |
|---|---|---|---|
| Feedback input | Yes | Yes | Yes |
| Incremental (A+B) output | Yes | Yes | Yes |
| Pulse & direction output | Yes | Yes | Yes |
| Reference input | Yes | Yes | Yes |
| SSI Absolute Input | Yes | Yes | Yes |
| EnDat Absolute Input | Yes | Yes | Yes |
| Tamagawa Absolute Input | Yes | Yes | Yes |
| BiSS Absolute Input | Yes | Yes | Yes |
| Internal I/O | P865 MC403-X |
P866 MC403-X |
P867 MC403-X |
|---|---|---|---|
| +/-10V analogue outputs | 2 | 2 | 2 |
| Analogue output precision | 12 bits | 12 bits | 12 bits |
| Analogue Inputs (0-10V) | 2 | 2 | 2 |
| Analog input precision | 12 bits | 12 bits | 12 bits |
| Digital Bidirectional I/O (24V) | 4 | 4 | 4 |
| Digital Inputs (24Vdc) | 8 | 8 | 8 |
| Digital outputs (24Vdc) | 0 | 0 | 0 |
| Registration inputs | 6 | 6 | 6 |
| Registration speed | 1 µs | 1 µs | 1 µs |
| Watchdogs | 1 | 1 | 1 |
| Watchdog rating | 29V, 100mA max | 29V, 100mA max | 29V, 100mA max |
| External I/O | P865 MC403-X |
P866 MC403-X |
P867 MC403-X |
|---|---|---|---|
| +/-10V analogue outputs | 16 | 16 | 16 |
| Analogue output precision | 12 bits | 12 bits | 12 bits |
| +/-10V analogue inputs | 32 | 32 | 32 |
| Analogue input precision | 12 bits | 12 bits | 12 bits |
| Digital I/O points | 512 | 512 | 512 |
| Programming | P865 MC403-X |
P866 MC403-X |
P867 MC403-X |
|---|---|---|---|
| Trio BASIC | Yes | Yes | Yes |
| DXF in | Yes | Yes | Yes |
| G-Code | Yes | Yes | Yes |
| HPGL | Yes | Yes | Yes |
| IEC61131 | Yes | Yes | Yes |
| Kinematic | Option | Option | Option |
| Maximum programs | 64 | 64 | 64 |
| Maximum tasks | 6 | 6 | 6 |
| Software | P865 MC403-X |
P866 MC403-X |
P867 MC403-X |
|---|---|---|---|
| Motion Perfect version | 5 | 5 | 5 |
| Expansion | P865 MC403-X |
P866 MC403-X |
P867 MC403-X |
|---|---|---|---|
| Expansion module type | None | None | None |
| Maximum modules | 0 | 0 | 0 |
| Memory card | Micro SD | Micro SD | Micro SD |
| Physical | P865 MC403-X |
P866 MC403-X |
P867 MC403-X |
|---|---|---|---|
| Maximum operating temperature | 45 °C | 45 °C | 45 °C |
| Minimum operating temperature | 0 °C | 0 °C | 0 °C |

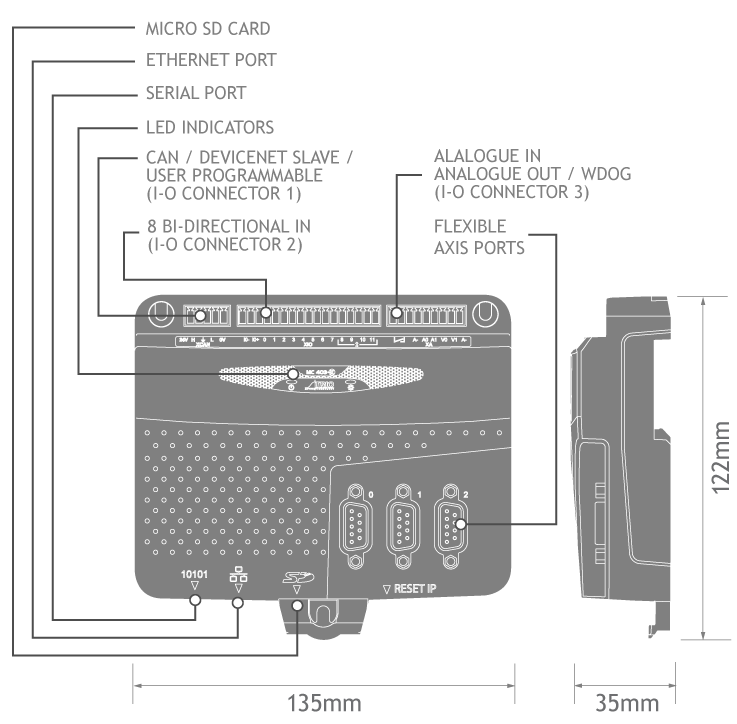

| Mount | Panel | Panel | Panel |
| Depth | 35.0 mm | 35.0 mm | 35.0 mm |
| Height | 122.0 mm | 122.0 mm | 122.0 mm |
| Width | 135.0 mm | 135.0 mm | 135.0 mm |
| Weight | 325 g | 325 g | 325 g |
| Power | P865 MC403-X |
P866 MC403-X |
P867 MC403-X |
|---|---|---|---|
| Supply current | 350 mA | 350 mA | 350 mA |
| Supply tolerance | +/- 20% | +/- 20% | +/- 20% |
| Supply voltage | 24 V | 24 V | 24 V |
| Certification | P865 MC403-X |
P866 MC403-X |
P867 MC403-X |
|---|---|---|---|
| CE | Yes | Yes | Yes |
| RoSH | Yes | Yes | Yes |
| UL | No | No | No |

Axis Configuration Key
| Core functionality | |||
|---|---|---|---|
CORE AXES – can be configured in software as pulse and direction outputs with stepper or servo drives. They can also be configured for incremental encoder feedback. Core functionality is a set of ATYPEs (Axis TYPEs) that are available on all controllers. They are based on pulse outputs and incremental encoder feedback. |
|||
| ATYPE | Description | ||
| 43 | Pulse and direction output with enable output | ||
| 45 | Quadrature encoder output with enable output | ||
| 63 | Pulse and direction output with Z input | ||
| 64 | Quadrature encoder output with Z input | ||
| 76 | Incremental encoder with Z input | ||
| 78 | Pulse and direction with VFF_GAIN and enable output 1 | ||
| Extended functionality | ||||
|---|---|---|---|---|
EXTENDED AXES – in addition to the Core functionality these axes can also be configured for absolute encoders and closed loop servos (requires voltage output). Only axes marked as AS have an analogue output and can be used for closed loop control. |
||||
| ATYPE | Description | |||
| 30 | Analogue feedback Servo | |||
| 44 | Incremental encoder Servo with Z input | |||
| 46 | Tamagawa absolute Servo | |||
| 47 | Endat absolute Servo | |||
| 48 | SSI absolute Servo | |||
| 60 | Pulse and direction feedback Servo with Z input | |||
| 77 | Incremental encoder Servo with enable output | |||
| 92 | Biss absolute servo | |||
| Products - CAN I/O Modules |
|---|
CAN I-O Expansion Modules Our range of digital and analogue input/output expansion modules are designed to enable simple and scalable and low-cost I/O extension for our Motion Coordinators. In addition to 24V input, output and bi-directional modules, there are relay and analogue I/O modules. |
| Products - Generic |
|---|
UNIPLAY 7-A UNIPLAY 10-A UNIPLAY 15-A Trio’s unique UNIPLAY HMI system is a revolutionary way to make operator interfaces better, easier and more secure! The UNIPLAY series boasts a 7", 10" and 15" colour displays. |
| Firmware - MC403-X | ||||||||
|---|---|---|---|---|---|---|---|---|
|
Latest USER Release:
|
| Software - Programming |
|---|
|
Motion Perfect Motion Perfect is designed to make setup, diagnostics, commissioning and using our range of Motion Coordinators as simple as possible. It provides the user with an easy to understand Windows based interface for rapid application development, controller configuration and monitoring of controller processes. |
|
IEC 61131-3 Runtime Software (P877) IEC 61131-3 standardises the programming language, the instruction sets and the handling and structuring of projects. As supplied, the IEC 61131 system will run programs for one hour after power-on, to allow engineers to try out their standard programs on the Motion Coordinator hardware. For continuous running, a software key (Feature Enable Code) can be downloaded from the Trio E-Store or purchased form your distributor for each Motion Coordinator to run IEC 61131 programs. . |
| Software - Expansion |
|---|
|
Kinematic Runtime FEC (P750) The P750 Robot kinematic runtime enables the more complex FRAME transformations which enable easy programming of various types of robot Including SCARA and Delta. (Log on to E-Store to purchase). |
|
FEC 23 - MC403-X Upgrade FEC (P817) The P817 Feature Enable Code allows the upgrade of the P685 to the P866. (Log on to E-Store to purchase). |
|
FEC 24 - MC403-X Upgrade FEC (P818) The P818 Feature Enable Code allows the upgrade of the P686 to the P867. (Log on to E-Store to purchase). |
| Software - Support Apps |
|---|
|
CAD2Motion The program allows the user to create motion paths in a CAD package such as AutoCAD and convert them into code executable by a Trio Motion Coordinator. |
|
AutoLoader A compact, self-contained package designed to allow simple distribution of projects written using Motion Perfect. Simply add the project to the Autoloader folder, edit a script file to provide control of the loading sequence and send to the customer. |
|
Trio MCLoader The Trio MC Loader is a Windows ActiveX control which can load projects (produced with Motion Perfect) and programs onto a Trio Motion Coordinator. Communication with the Motion Cordinator can be via serial link, USB, Ethernet or PCI depending on the Motion Coordinator. |
|
Trio PCMotion PCMotion is an ActiveX component allowing direct connection to the Trio Motion Coordinator from a custom user application. It can be used to control any of the Motion Coordinator functionality as well as send text files down to the controller. |
|
TextFileLoader The file loading functionality of the Motion Coordinators allows files to be easily loaded into the controller memory or the SD card (when fitted). This allows programs written in text based languages such as G-Code and HPGL to be loaded to the controller where they can be parsed and executed by a TrioBASIC program. The transfer process is optimized to compress the file and reduce transfer times, or it can be set to stream the file into a FIFO buffer on the controller. This can help reduce overall machine cycle times when file sizes can be large and so making communication time significant. |
| Guides | |
|---|---|
| Data Sheet | Data Sheet |
| Quick Start Guide | Simple set up guide |
| Wiring Guide | Recommended Wiring guide |
| EMC Guide | Electromagnetic Compatibility guide for Trio products v6 |
| Manual | |
|---|---|
| Technical Reference manual | Download manual in PDF format |
| Certificates | |
|---|---|
| EU Declaration | MC403-X EU Declaration of Conformity |
| UK Declaration | MC403-X UK Declaration of Conformity |
| UL Listing | Please insert E238097 UL File Number in the search box. |
| Fieldbus Data | |
|---|---|
| EtherNet IP EDS (Electronic Data Sheet) files | MC403-X EtherNet IP EDS (Electronic Data Sheet) files |
| DeviceNet EDS (Electronic Data Sheet) files | MC403-X DeviceNet EDS (Electronic Data Sheet) files |
| CAD Data | |
|---|---|
| Download Zip file | Drawings are available in various formats in the Zip file below. |
| Customer Help | |
|---|---|
| Customer Support Forum | Trio has a world-wide technical support network providing information to our Distributors, Solution Partners and Customers. This page includes a knowledge-base, user forum and direct online ticketing system where answers will be provided by our engineers in the UK, USA, India, China and Italy. |
| Training Courses | Our 2-day introductory courses are designed to provide an overview of the Motion Coordinator product range and to give an introduction to programming using the Motion-iX technologies. The course is based upon practical worked examples of each topic covered to enable the attendees to gain some valuable hands-on experience of using Motion Perfect to develop applications. |
| Product Repair Information | We offer a fixed price repair service via our distributor network. This page provides information on how to get your product repaired. |
MC403-(Z) - MC403-X Migration Table
| MC403-Z | MC403-X | MC403-Z | MC403 | MC403 | MC403-X | MC403 | MC403-X | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P821 | P865 | P822 | P825 | P823 | P866 | P824 | P867 | |||||
| Axis 0 | Stepper Out | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |||
| Inc. Encoder | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||||
| Abs. Encoder | No | Yes | No | Yes | Yes | Yes | Yes | Yes | ||||
| Servo | No DAC | No | No DAC | Yes | No | Yes | Yes | Yes | ||||
| Axis 1 | Stepper Out | Yes | Yes | Yes | No | Yes | Yes | Yes | Yes | |||
| Inc. Encoder | Yes | Yes | Yes | No | Yes | Yes | Yes | Yes | ||||
| Abs. Encoder | No | Yes | No | No | Yes | Yes | Yes | Yes | ||||
| Servo | No DAC | No | No DAC | No | No | No | Yes | Yes | ||||
| Axis 2 | Stepper Out | No | No | Yes | Yes | Yes | Yes | Yes | Yes | |||
| Inc. Encoder | No | No | Yes | Yes | Yes | Yes | Yes | Yes | ||||
| Abs. Encoder | No | No | No | Yes | Yes | Yes | Yes | Yes | ||||
| Servo | No DAC | No DAC | No DAC | No DAC | No DAC | No DAC | No DAC | No DAC |
| MC403-Z | MC403-X | MC403-Z | MC403 | MC403 | MC403-X | MC403 | MC403-X | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P821 | P865 | P822 | P825 | P823 | P866 | P824 | P867 | |||||
| Axis 0 | Axis type | Core | Extended | Core | Extended | Extended | Extended+AS | Extended+AS | Extended+AS | |||
| Registration | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||||
| HW_PSWITCH | No | Yes | No | Yes | Yes | Yes | Yes | Yes | ||||
| Use of DAC | No | Yes | No | Yes | Yes | Yes | Yes | Yes | ||||
| Axis 1 | Axis Type | Core | Extended | Core | None | Extended | Extended | Extended+AS | Extended+AS | |||
| Registration | Yes | Yes | Yes | n/a | Yes | Yes | Yes | Yes | ||||
| HW_PSWITCH | No | Yes | No | n/a | Yes | Yes | Yes | Yes | ||||
| Use of DAC | No | Yes | No | Yes | Yes | Yes | Yes | Yes | ||||
| Axis 2 | Axis Type | None | None | Core | Extended | Extended | Extended | Extended | Extended | |||
| Registration | n/a | n/a | Yes | Yes | Yes | Yes | Yes | Yes | ||||
| HW_PSWITCH | n/a | n/a | No | Yes | Yes | Yes | Yes | Yes | ||||
| Use of DAC | No DAC | No DAC | No DAC | No DAC | No DAC | No DAC | No DAC | No DAC |
