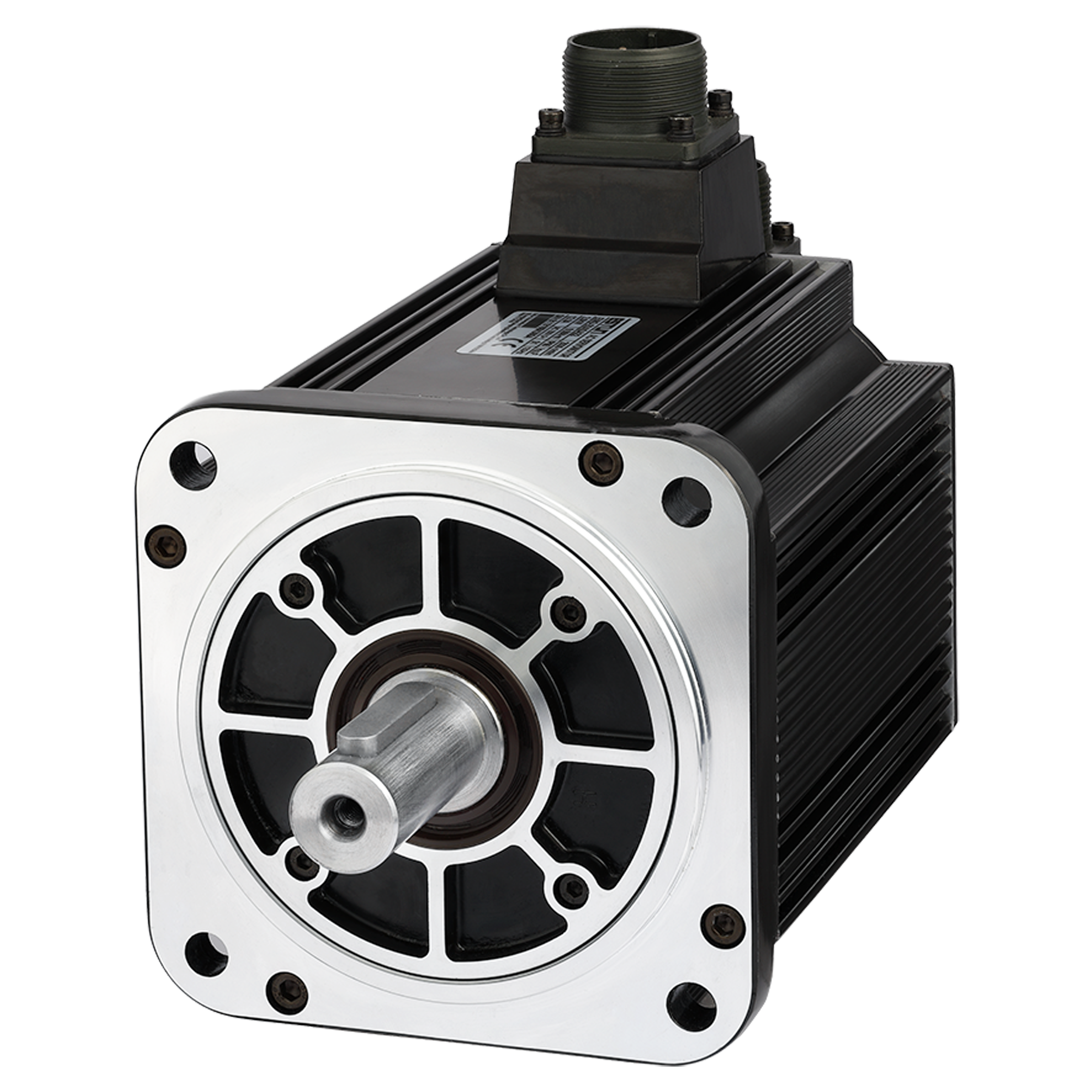

MXL Servo Motor Range

The MXL range of Low Inertia High Speed Servo Motors for the DX Servo Drives 50W - 5kW range.

The MXL family of servo motors include solutions with absolute or incremental encoders, are suitable for application speeds up to 6000 rpm, include variants with an integrated brake.

Low inertia allows very fast response times and these motors develop a very high torque despite their small size. In combination with our servo drives, they are ideal for applications with high dynamic responses and fast and precise positioning.

Our servo drive systems can be used in a wide range of applications thanks to their high performance, available power range and compact dimensions.

Trio Support & Forum

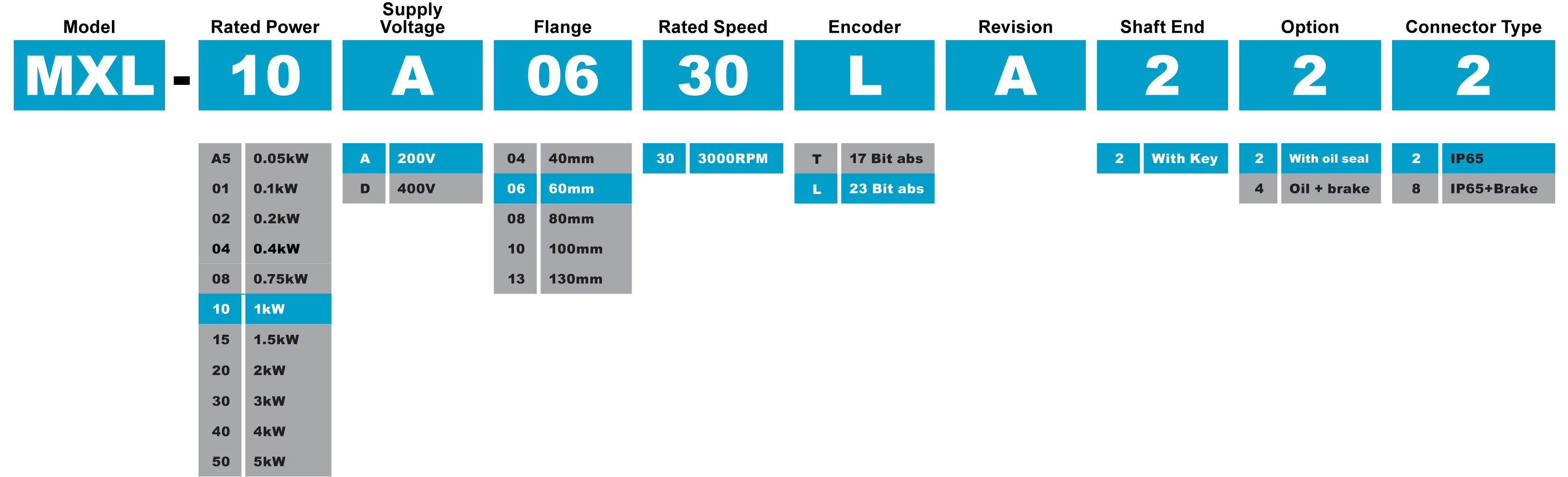

MXL

Highlights

  • 20-bit incremental or 23-bit absolute encoder option
  • IP65 rated
  • Oil seal as standard
  • Optional brake

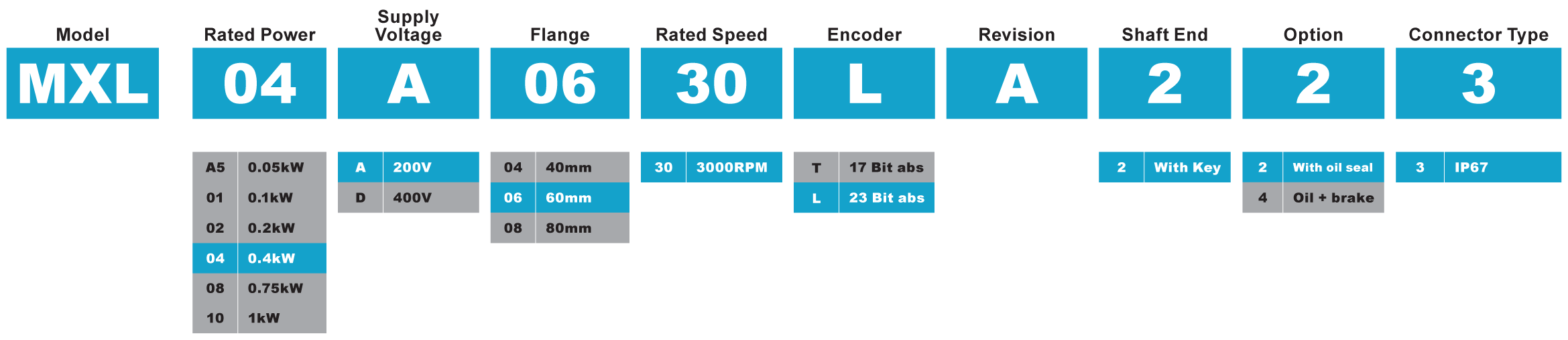

MXL

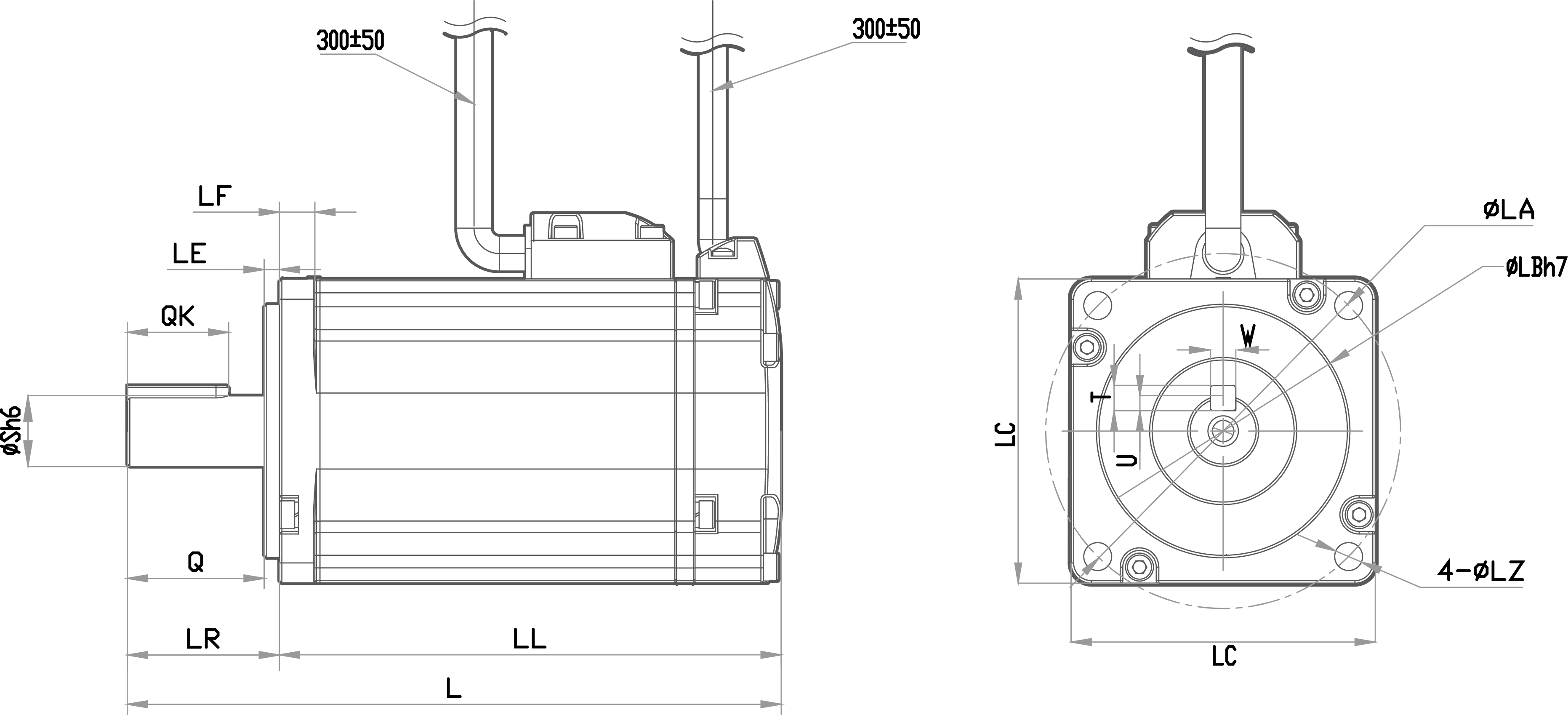

  Flange Side   Key
Power MOTOR #
(see ref)		 L LL LR LE LF LC LA LB lz S Tap x Depth QK W T U Q
50W A5AL 87.5 (121) 62.5 (96) 25 2.5 5 40 46 30 4.3 8 M3x 6 14 8 3 3 22.5
100W 01AL 103.5(137) 78.5 (112) 25 2.5 5 40 46 30 4.3 8 M3x 6 14 8 3 3 22.5
100W 01AT 113.5 (147) 88.5(122) 25 2.5 5 40 46 30 4.3 8 M3x 6 14 8 3 3 27
200W 02AL 108 (137) 78 (102) 30 3 7 60 70 50 5.5 14 M5x 12 20 8 5 5 27
200W 02AT 126.5 (155.5) 96.5 (125.5) 30 3 7 60 70 50 5.5 14 M5x 12 20 8 5 5 37
400W 04AL 129 (158) 99 (128) 30 3 7 60 70 50 5.5 14 M5x 12 20 8 5 5 37
400W 04AT 147.5 (176.5) 117.5 (146.5) 30 3 7 60 70 50 5.5 14 M5x 12 20 8 5 5 27
750W 08AL 151 (184) 111 (144) 40 3 8 80 90 70 6.6 19 M6x 12 25 8 6 6 27
750W 08AT 167.5 (200.5) 127.5 (160.5) 40 3 8 80 90 70 6.6 19 M6x 12 25 8 6 6 37
1kW 10AL 165 (198) 125 (158) 40 3 8 80 90 70 6.6 19 M6x 12 25 8 6 6 37
1kW 10AT 185 (214.5) 141.5 (175.5) 40 3 8 80 90 70 6.6 19 M6x 12 25 8 6 6 37
MXL
MXL
MXL
MXL
MXL
MXL
MXL

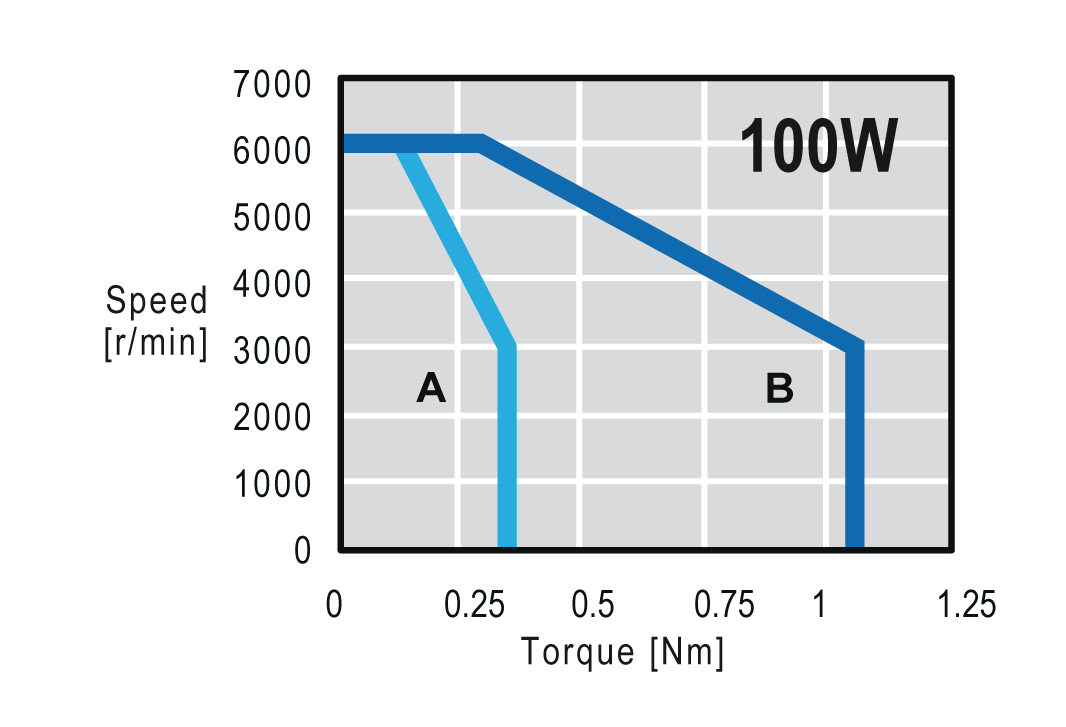

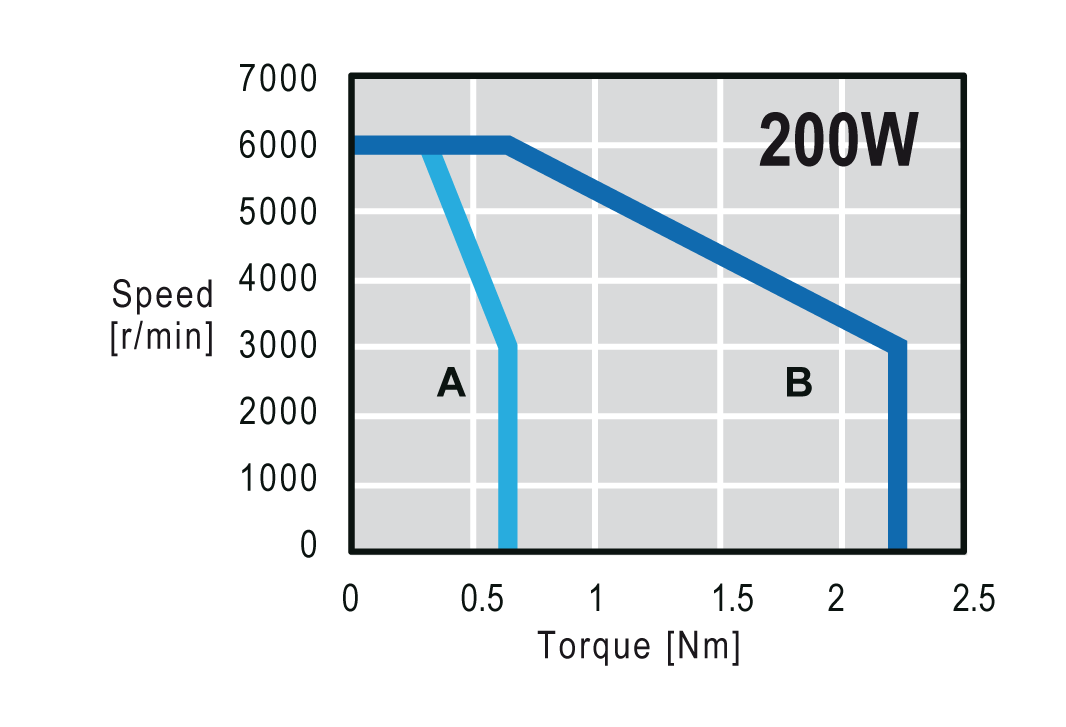

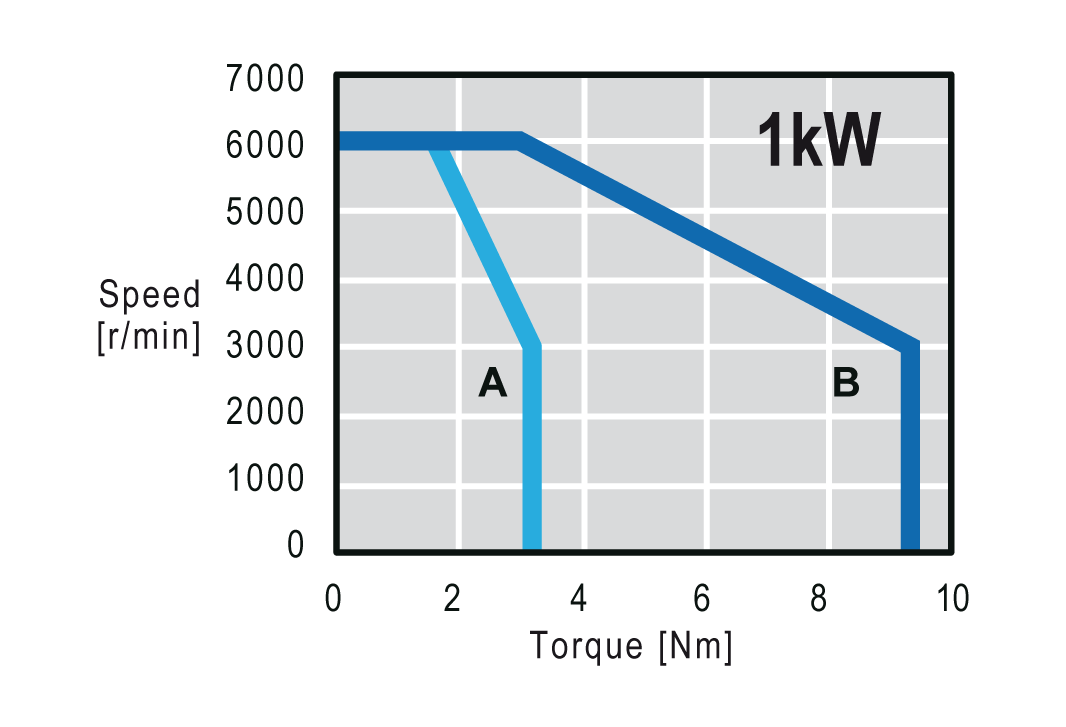

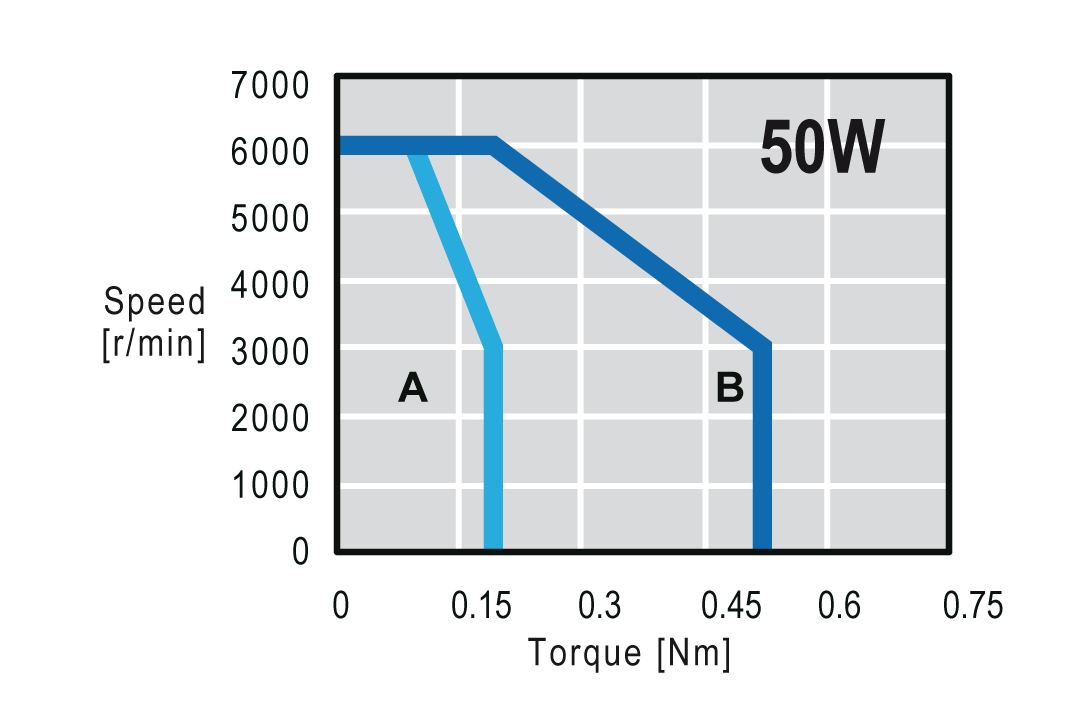

A: Continuous Working Area B: Repeatedly Working Area

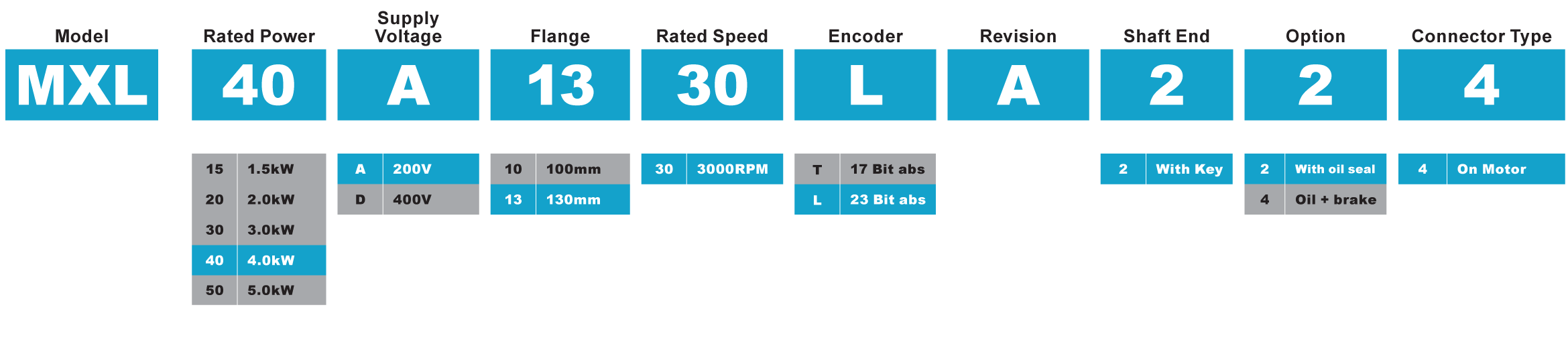

MXL

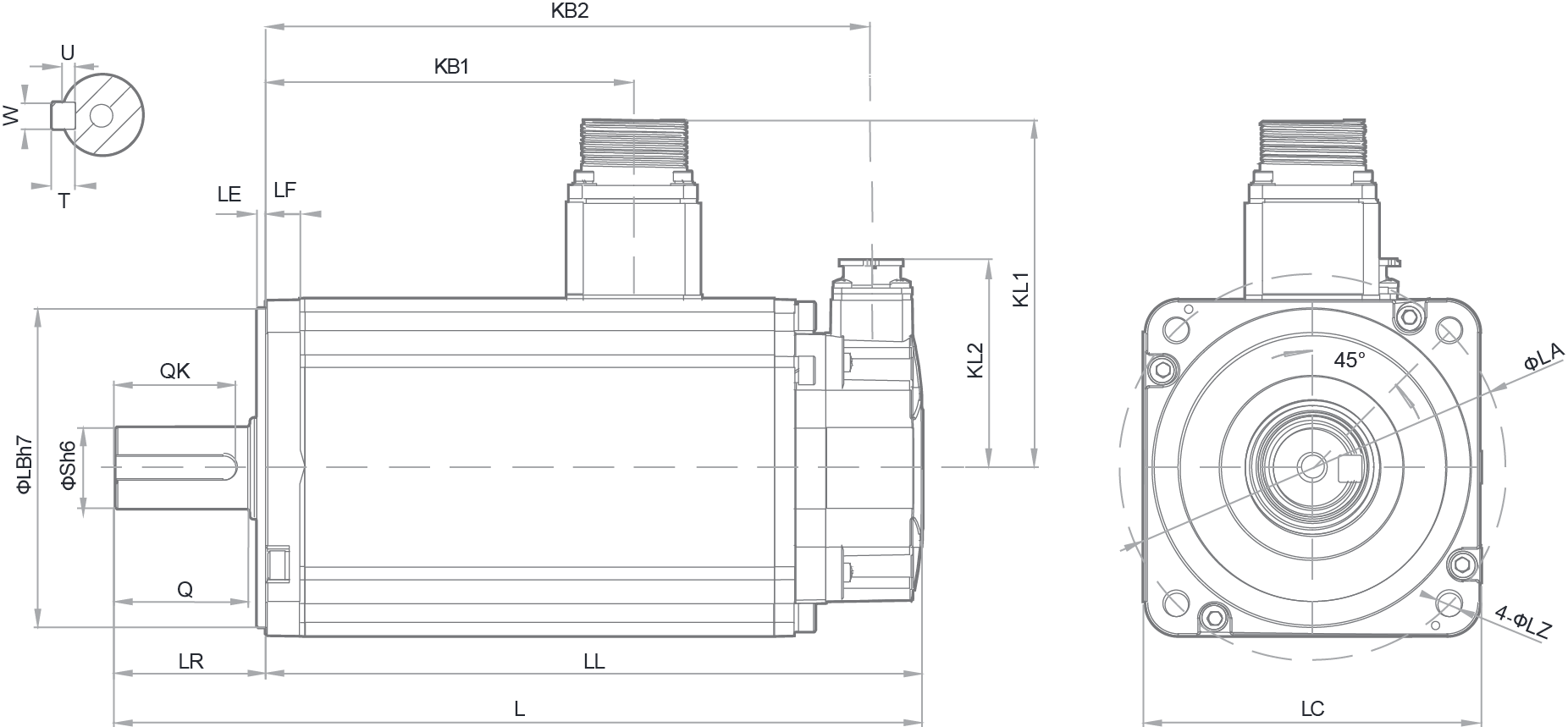

  Flange Side   Key
Power MOTOR #
(see ref)		 L LL LR LE LF LC LA LB lz S Tap x Depth QK W T U Q
1.5kW 15A/15D 210 (240) 165 (195) 45 3 10 100 115 95 7 24 M8x 16 36 8 8 7 40
2kW 20A/20D 230 (260) 185 (215) 45 3 10 100 115 95 7 24 M8x 16 36 8 8 7 40
3kW 30D 257 (298.5) 194 (226.5) 63 6 12 130 145 110 9 28 M8x 16 54 8 8 7 55
4kW 40D 284 (316.5) 221 (253.5) 63 6 12 130 145 110 9 28 M8x 16 54 8 8 7 55
5kW 50D 324 (356.5) 261 (293.5) 63 6 12 130 145 110 9 28 M8x 16 54 8 8 7 55
MXL
MXL
MXL
MXL
MXL
MXL

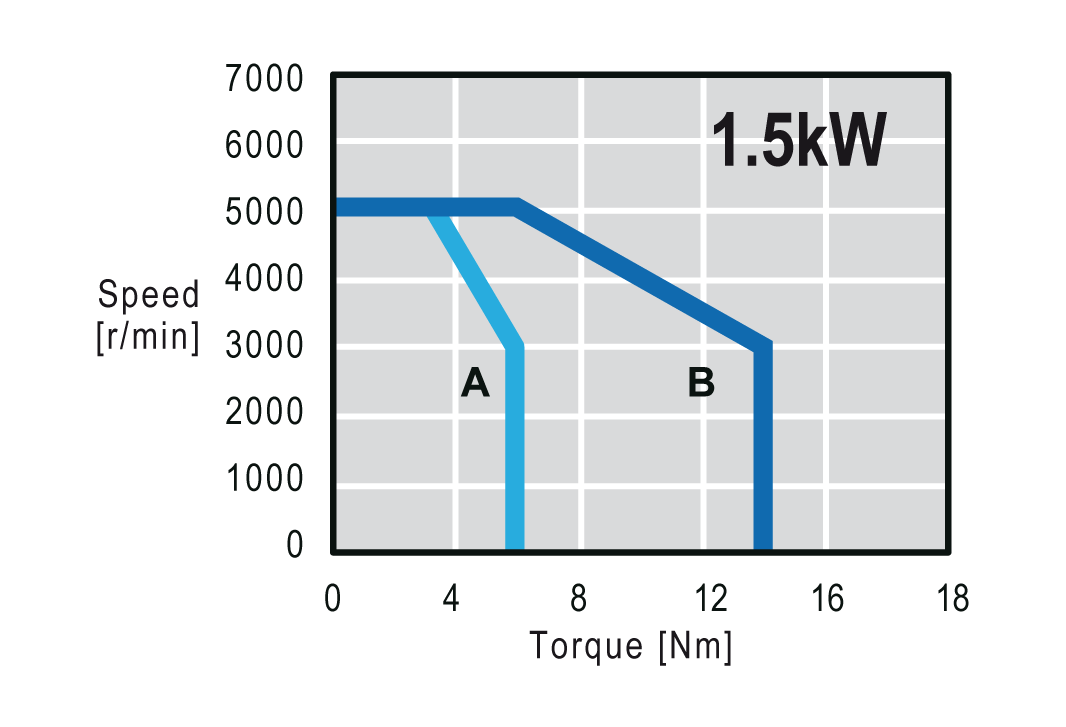

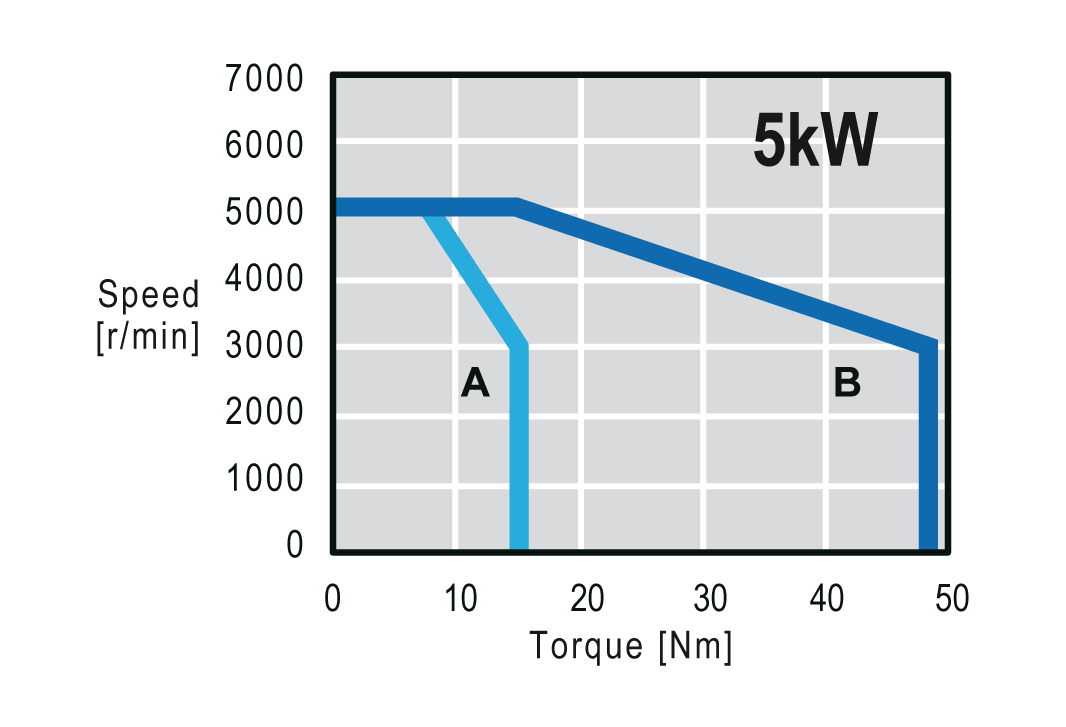

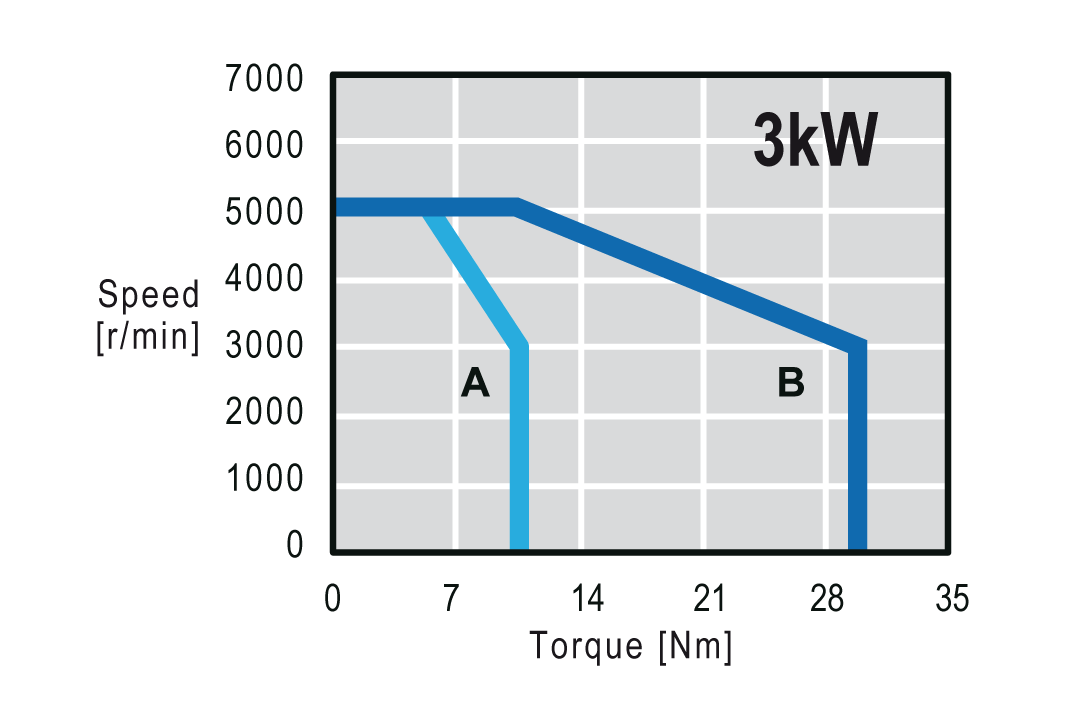

A: Continuous Working Area B: Repeatedly Working Area

Download the Trio Drive, Motor and cable Selection table to allow easy selection of drive, motor, cables and connectors.
Use the drop-down menus to narrow down the selection.

Trio Drive and Motor Selection Table protected.zip

The download is a password protected .zip file. To un-zip, use the password ‘Trio2023’.
Cables for MXL Motor Range 50W - 1kW

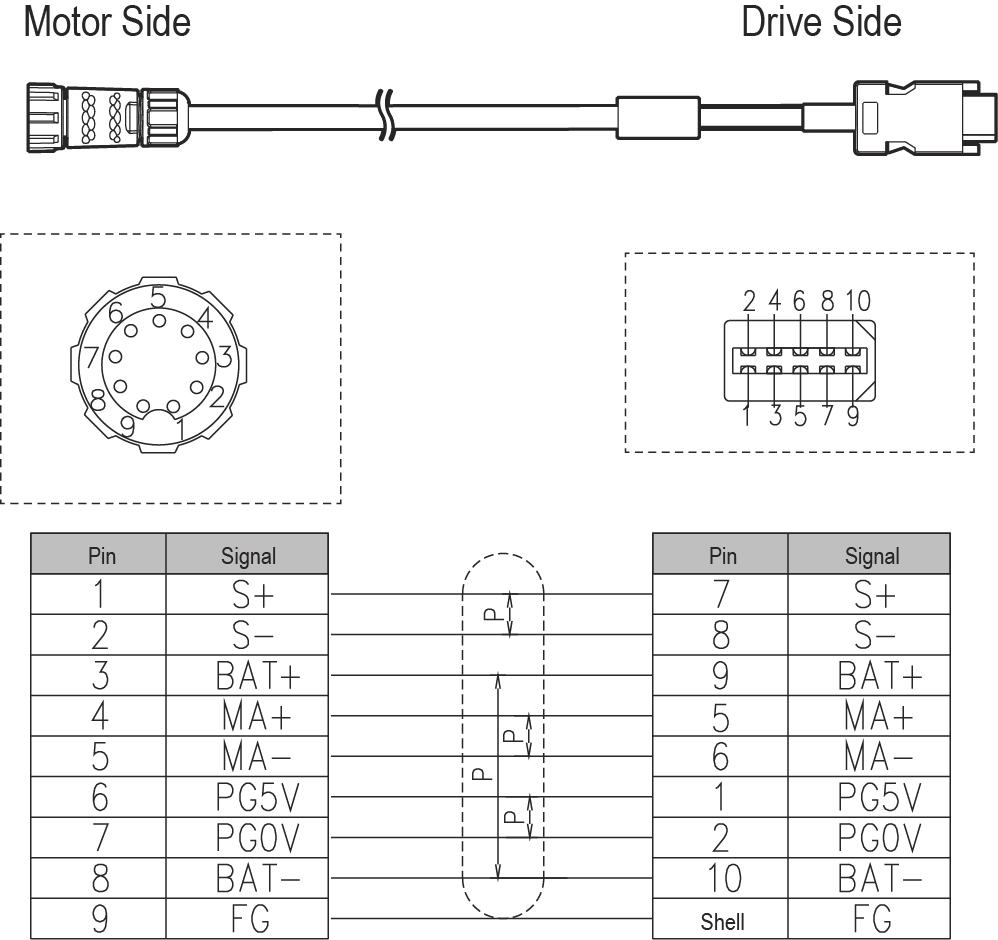

Incremental Encoder Cable

EC3S-I1724-RX-nn

cables

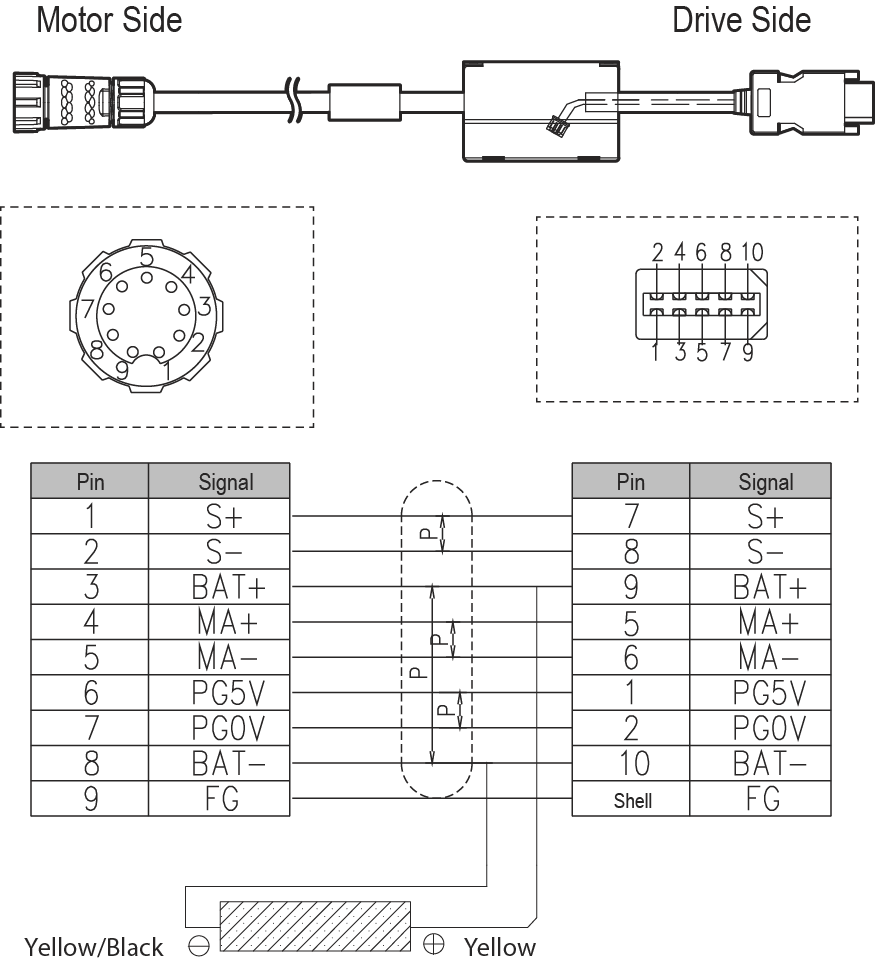

Absolute Encoder Cable

EC3S-A1724-RX-nn

cables

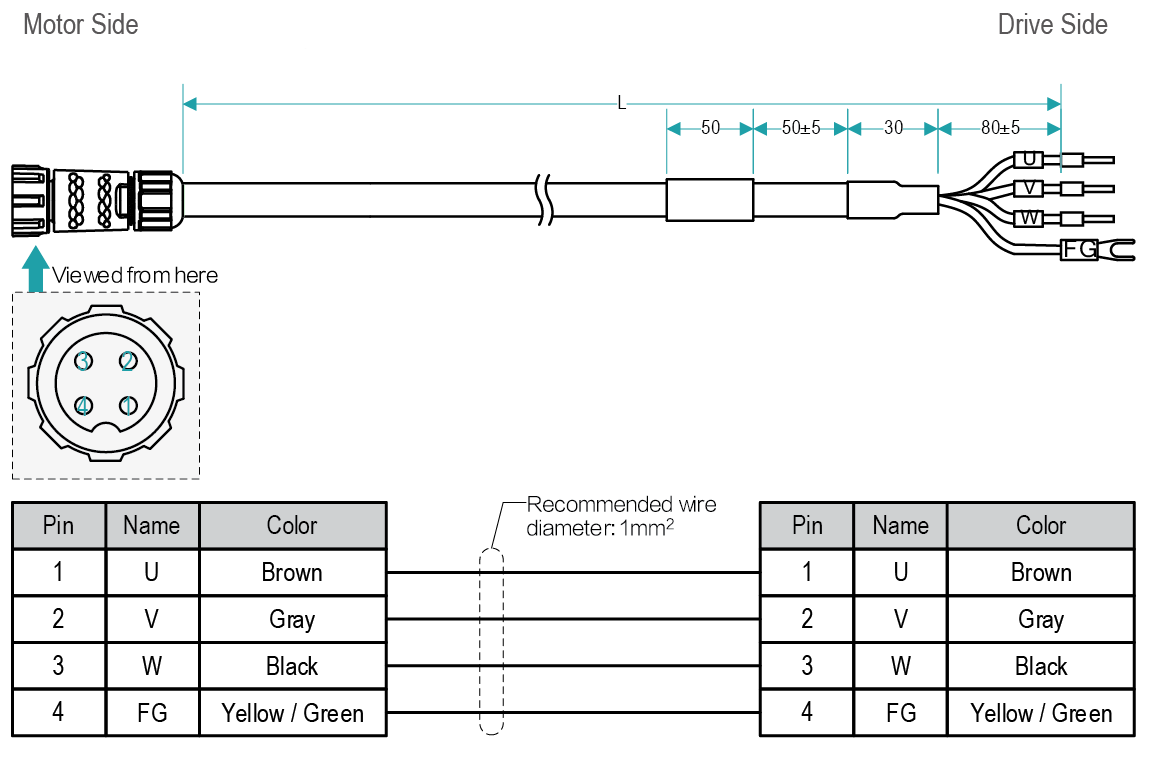

Power Cable No Brake

EC3P-N8718-RX-nn

cables

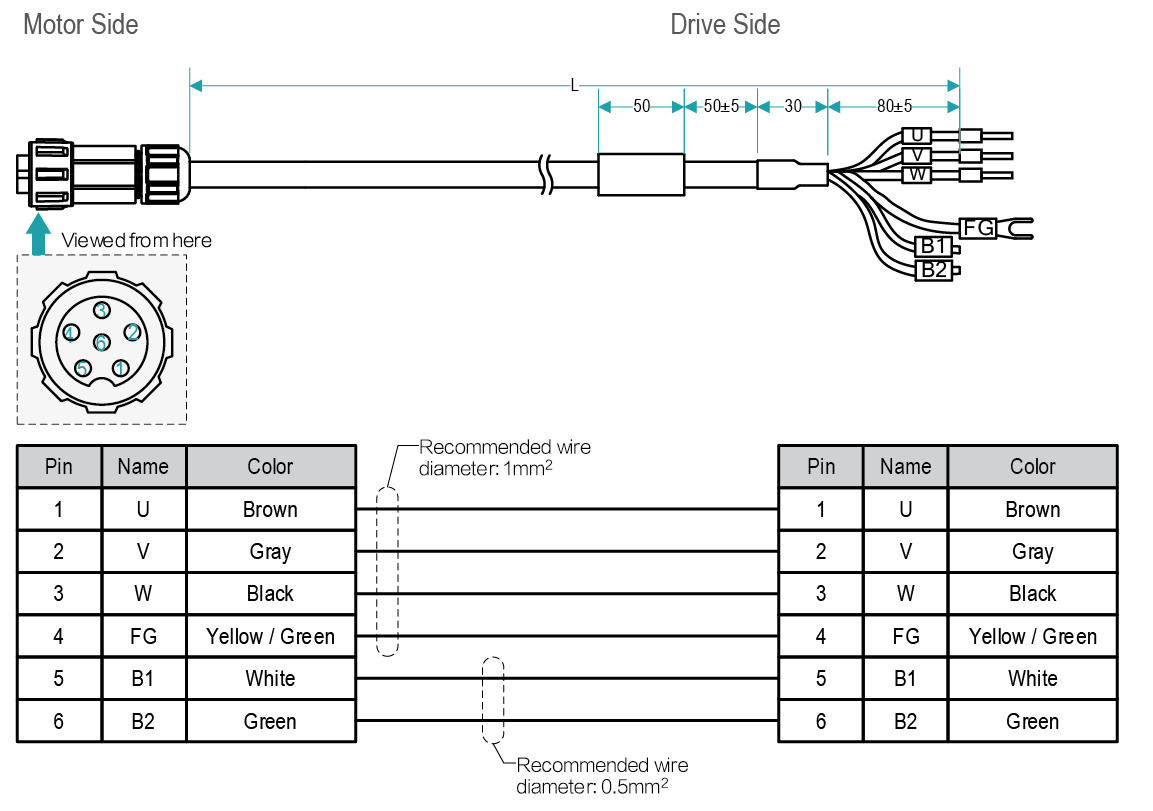

Power Cable With Brake

EC3P-B8718-RX-nn

cables
Cables for MXL Motor Range 1.5kW - 3kW

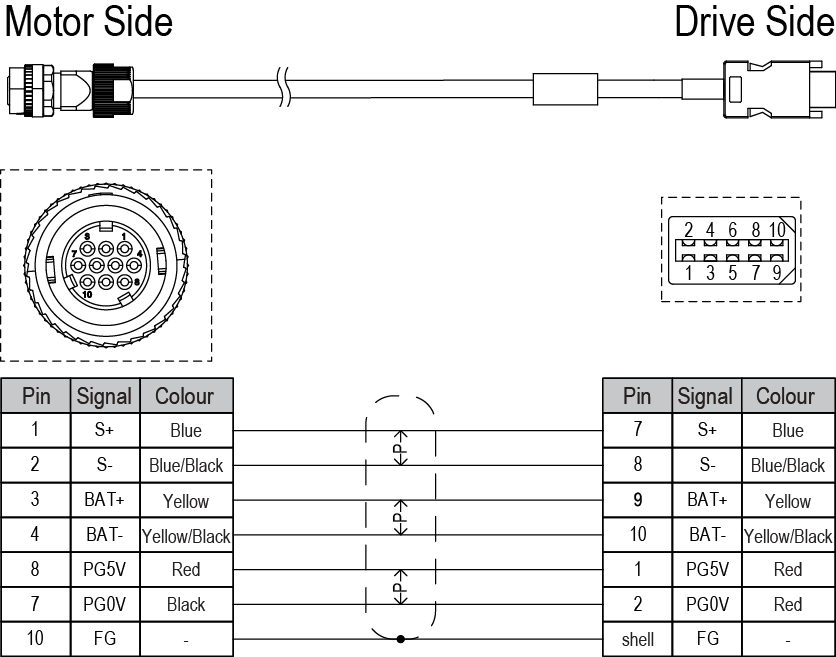

Incremental Encoder Cable

EC3S-I1924-RX-nn

cables

Absolute Encoder Cable

EC3S-A1924-RX-nnnn

cables

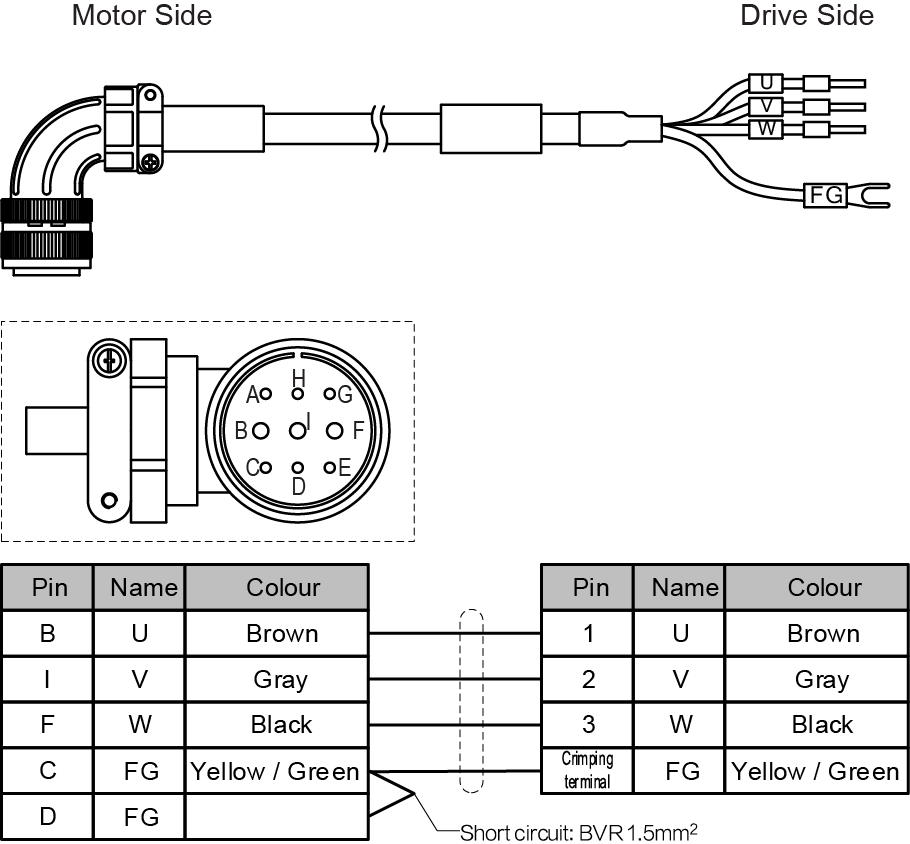

Power Cable No Brake

EC3P-N9314-RX-nn

cables

Power Cable With Brake

EC3P-B9314-RX-nn

cables
Cables for MXL Motor Range 4kW - 5kW

Incremental Encoder Cable

EC3S-I1924-RX-nn

cables

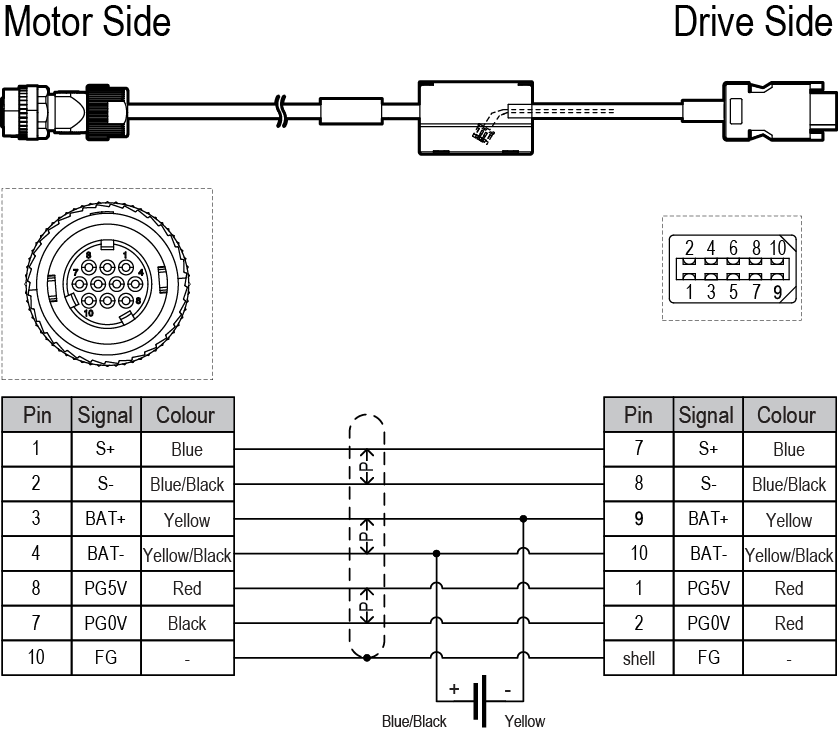

Absolute Encoder Cable

EC3S-A1924-RX-nn

cables

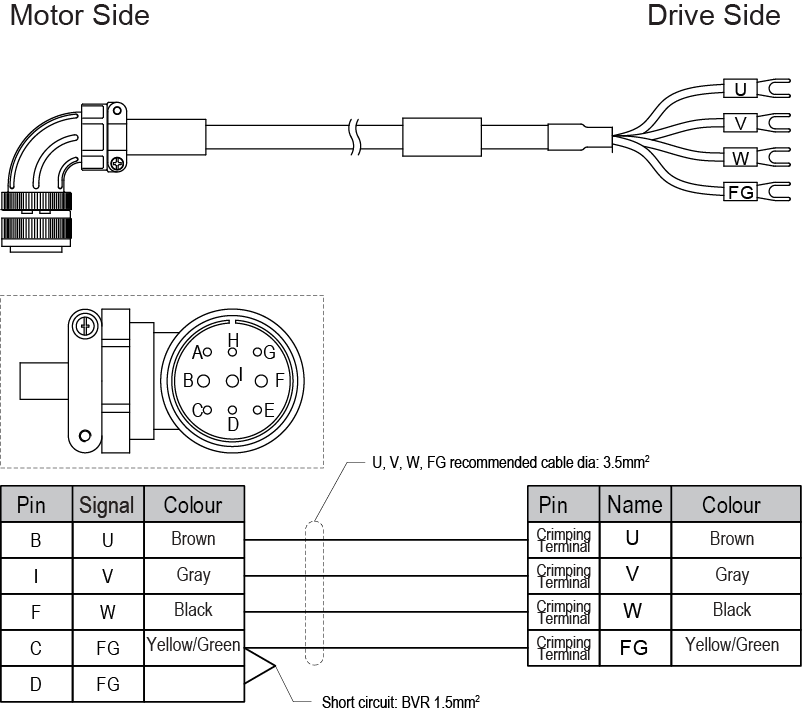

Power Cable No Brake

EC3P-N9319-RX-nn

cables

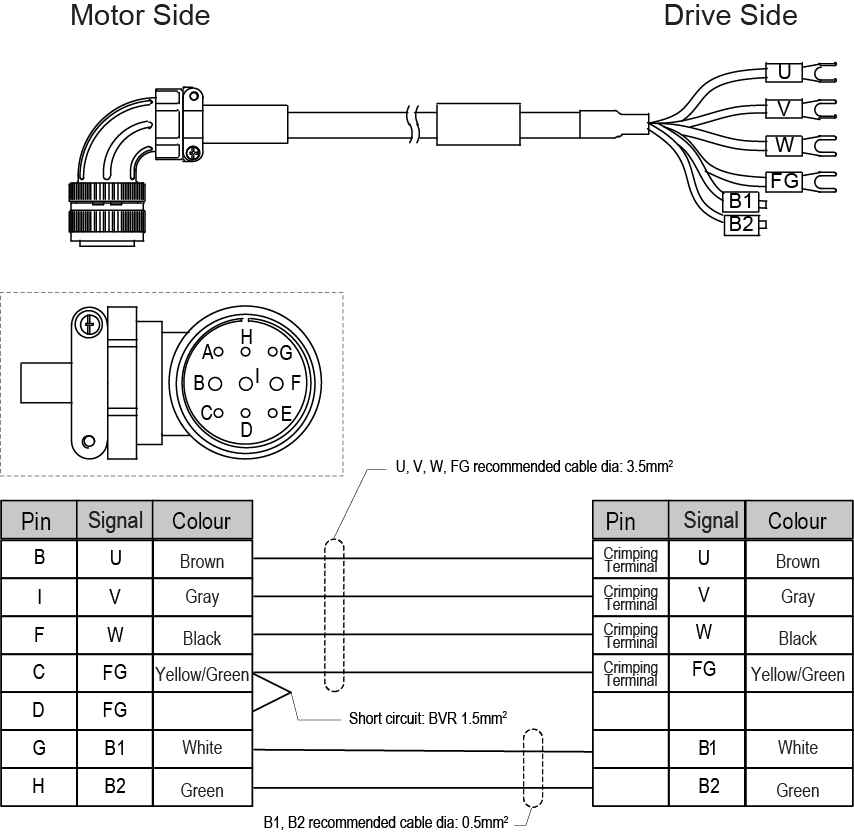

Power Cable With Brake

EC3P-B9319-RX-nn

cables

Cable Key

The XX at the end of the CABLE code represents the cable length:
E.g.; EC3S-I1724-10 = 10 metre cable
valid lengths are: 1M5, 05, 10, 15, 20
All lengths are in Metres
Note:

All ‘RX’ cable are flexible and suitable for drag chain applications.
Key to Abbreviations:
inc: incremental
abs: absolute
std: standard
