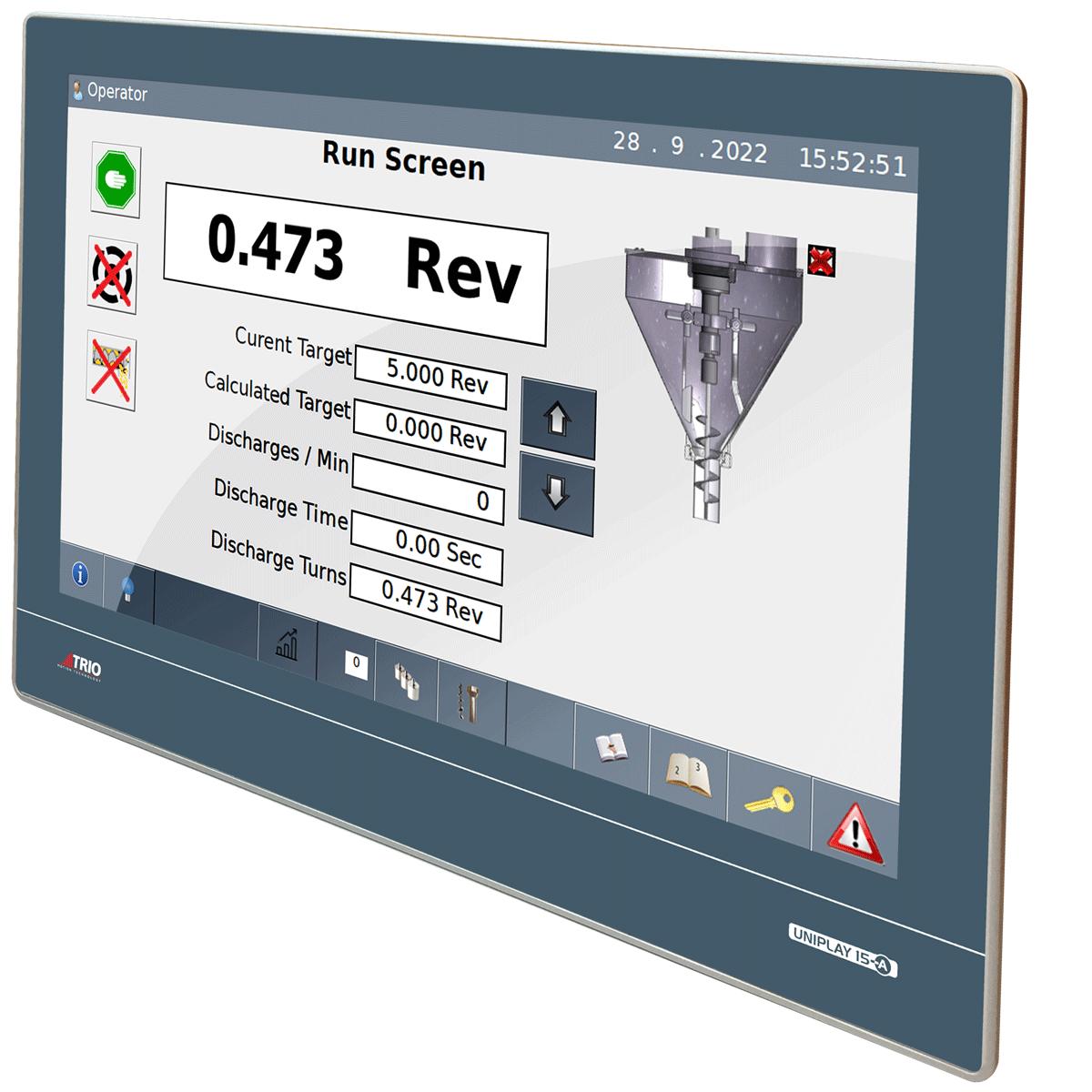

Trio's unique UNIPLAY HMI system is a revolutionary way to make operator interfaces better, easier and more secure! The P563 boasts a 15" colour display.

HMI

Highlights

  • Integrated HMI programming as part of machine solution
  • Centralised program / HMI screen storage in a single project
  • Tightly integrated to Motion Coordinator application
  • Link HMI buttons to functions in Motion Coordinator program
  • Simulator built into Motion Perfect to test designs before deployment
  • 15" UNIPLAY sealed touch panel
  • Connect up to 2 HMI's to your Motion Coordinator
  • Ethernet connection reduces wiring

Bigger - Better

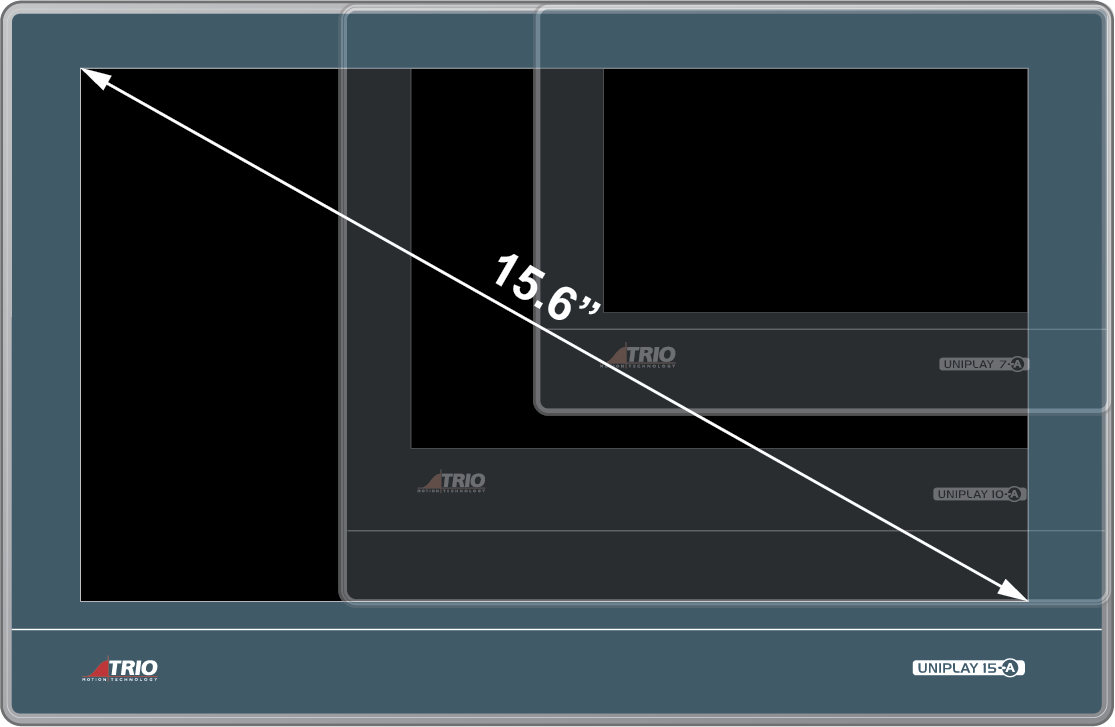

The large 1920 x 1080 15.6" screen allows more area for your projects. No additional software is required; UNIPLAY HMI's work with the Trio's Motion Coordinator range. Motion Perfect is used to create operator HMI screens which are transferred to the UNIPLAY HMI by the Motion Coordinator at runtime

HMI

The BIG brother of the family.
  UNIPLAY 15-A
Part Number P563
Processor 1GHz ARM Cortex-A8
Display Size 15.6" TFT LCD
Brightness 250 cd/m2
Colours 16-Bit
Contrast Ratio 500:1
Resolution 1920 x 1080
Ethernet Port 1 x 10/100 Base-T
Memory Flash Storage: 256MByte
RAM: 512Mbyte DDR
Power 24Vd.c.+-20%
Max Power Consumption ~400mA@24Vd.c.
Module Size (H x W x D) 394mm x 256mm x 36mm
Weight 2.25kg
Panel Cut-out Dimensions 380mm x 245mm
CE marked for EMC Yes
RoHS Compliant
HMI 15-A

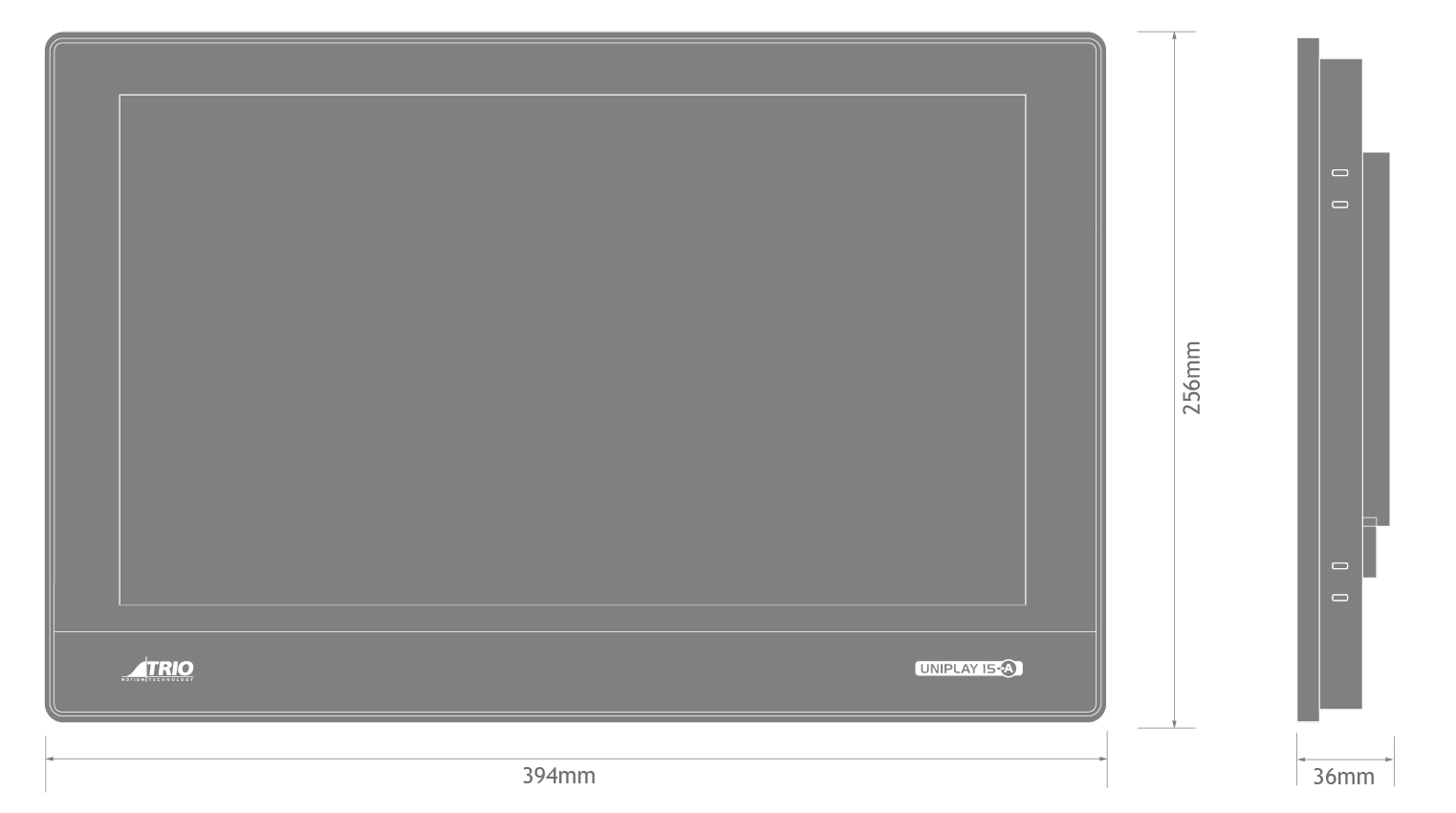

All dimensions accurate to +/-0.3mm
