Flex-7 -
Flexible Machine Controller

P770

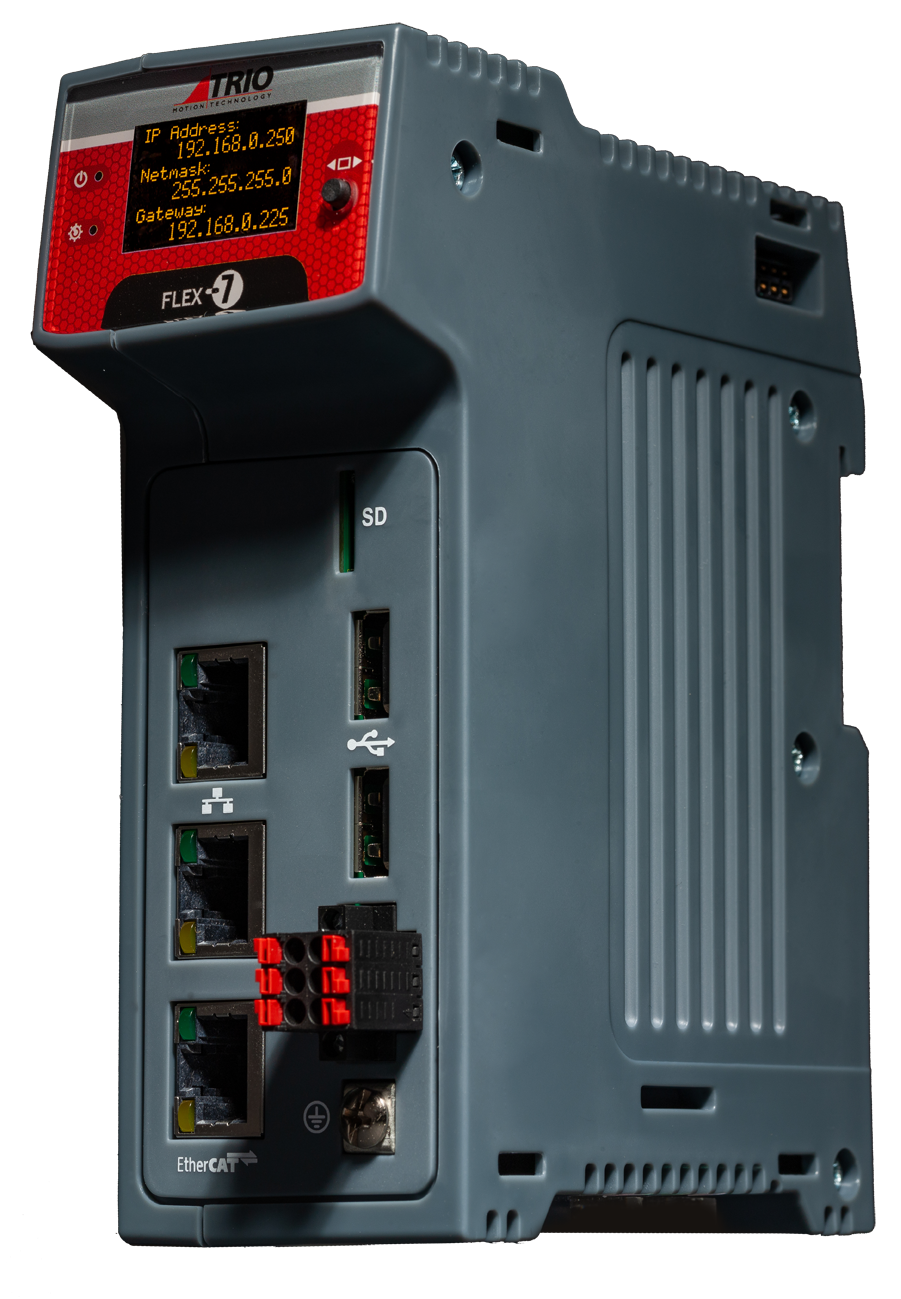

The Flex-7 is Trio’s high performance, compact Flexible Machine Controller. Offering 128 axes of motion via EtherCAT, with update rates down to 125us.

Benefiting from a re-architected communications interface and a quad core processor the Flex-7 offers a step change in performance in Trio’s Flexible Machine Controller range. With separate cores dedicated to motion and communications combined with the Gigabit Ethernet hardware the Flex-7 can handle complex motion and high-speed communication interfaces for high axis count machines.

Highlights

  • Up-to 128 EtherCAT axes with update rates down to 125µs
  • Advanced Motion-iX core with new architecture for communications
  • Gigabit Ethernet ports
  • Modbus, Ethernet IP, support for upstream connection
  • Fully integrated into Motion Perfect
  • Programming TrioBASIC and IEC 61131-3 with PLCopen
  • EBUS interface, compatible with existing Flexslice hardware
  • Memory expansion via SD card or USB 2.0 drives
  • CAN port
  • Real time clock
  • 1.2GHz Quad Core 64-bit ARM Cortex A53
  • 2GB DDR4 Memory, 16GB eMMC storage
  • Dot matrix display (96 x 64)
  • RoHS and CE approved
EtherCAT logo
Performance Efficient

More Axes Please!

The P770 has 2 built-in EtherCAT axes which can be user upgraded with the purchase of P912 Remote Axis FECs. Up to 64 axes are supported using CSP, CSV and CST modes of operation.

Each P912 doubles the available axes, i.e:

P770 + 1 x P912 = 4 Remote Axes
P770 + 2 x P912 = 8 Remote Axes
P770 + 3 x P912 = 16 Remote Axes
P770 + 4 x P912 = 32 Remote Axes
P770 + 5 x P912 = 64 Remote Axes
P770 + 6 x P912 = 128 Remote Axes

Design Efficient

Fast and Flexible

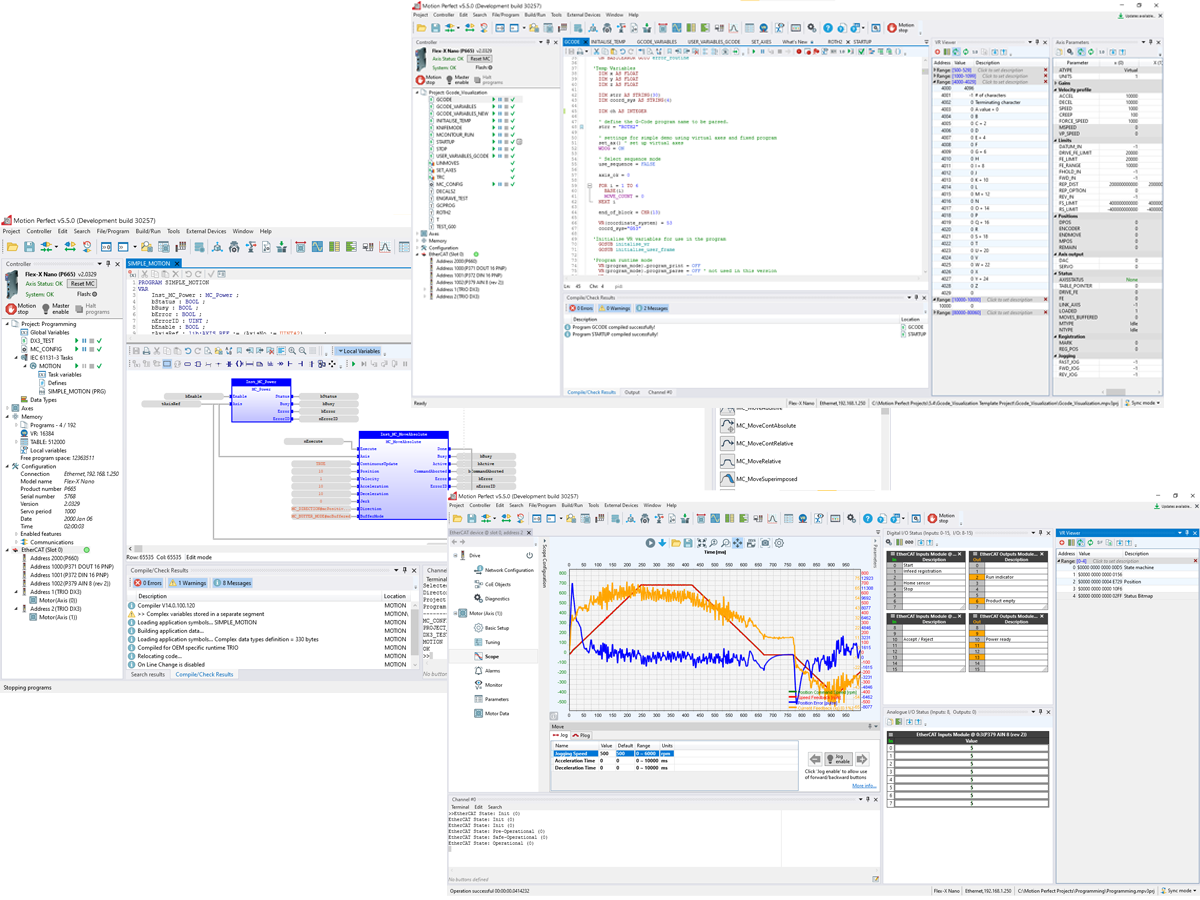

Application programs can be written in TrioBASIC, Trio’s established multi-tasking programming language, or industry standard IEC-61131-3 using the powerful Motion Perfect application development software.

Flex-7
Integration Efficiency

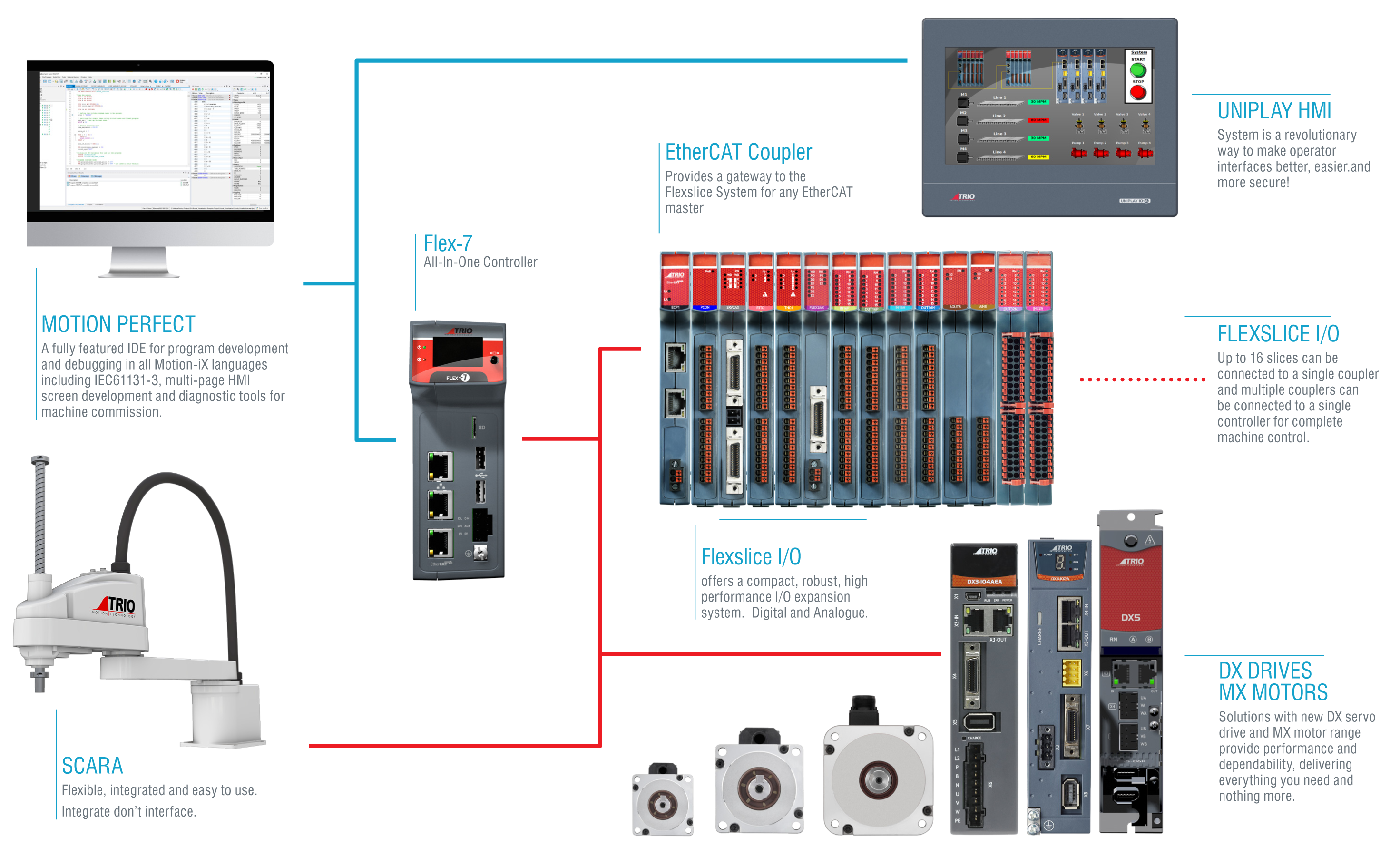

Expanding the System

The Flex-7 is fully compatible with Trio’s Flexslice system consisting of a range of high performance I/O peripherals including digital and analogue I/O along with stepper controllers, temperature measurement and encoder interfaces.P366 Flexslice Couplers.

Flex-7

All in one Solution

The Flex-7 can be used as a stand-alone controller or can "plug" straight into our EtherCAT Flexslice System allowing expansion of the system to include servo and stepper drives, I/O and other functionality that conforms to the EtherCAT standard.
Model Flex-7
Part number P770
Power Supply Main supply 24V DC ±20%
Backup supply 24V DC ±20%
Environmental Conditions Temperature Ambient temperature: 0˚C to 45˚C
Storage temperature: -20˚C to +85˚C
Humidity Both operating and storage: 5% to 95% (with no condensation)
Protection Class IP20

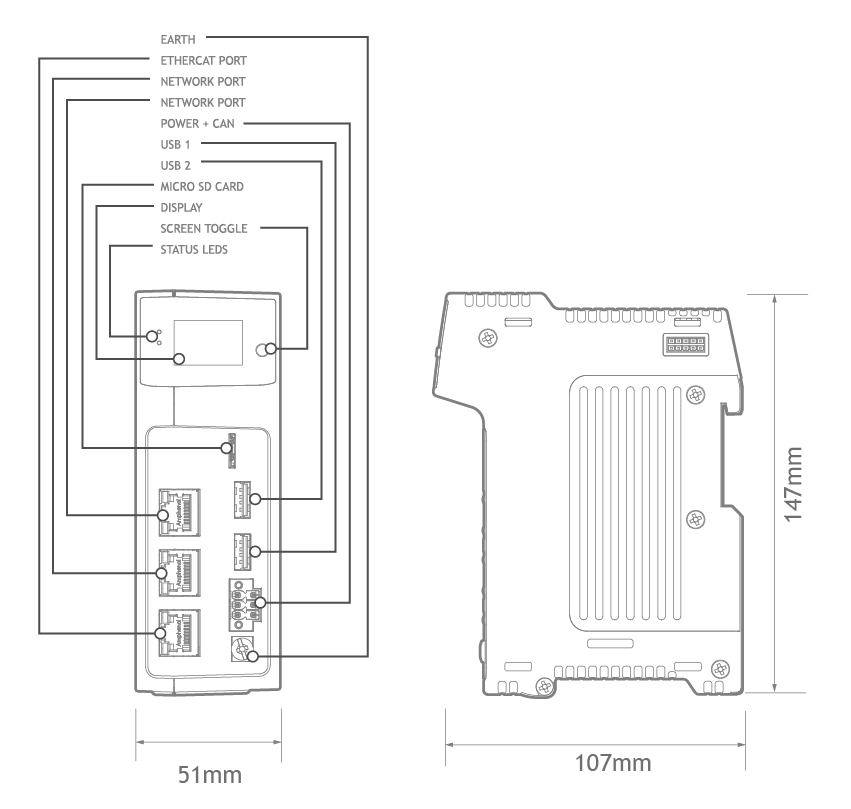

Dimensions Height 147.0 mm
Depth 107.0 mm
Width 51mm
Mounting DIN rail mouting
Certifications and Approvals CE
UKCA
UL (US and Canada) (Pending Approval)
Processor ARM A53, quad core, 64-bit, 1.2GHz
EBUS Compatible with all Flexslice units
2700mA (13W) for EBUS slices
Up to 16 Flexslices units
Ethernet Port 0 RJ45 with integrated activitiy LEDs
1000Mbit/sec (recommended cable 100Mbit/sec CAT5e shielded SF/UTP / 1000Mbit/sec CAT6)
Generic Ethernet (e.g. Motion Perfect, Uniplay HMI, GigE devices)
Industrial Ethernet protocols (e.g. Modbus TCP, Ethernet/IP)
Ethernet Port 1 RJ45 with integrated activitiy LEDs
1000Mbit/sec (recommended cable 100Mbit/sec CAT5e shielded SF/UTP / 1000Mbit/sec CAT6)
Generic Ethernet (e.g. Motion Perfect, Uniplay HMI, GigE devices)
Industrial Ethernet protocols (e.g. Modbus TCP, Ethernet/IP)
EtherCAT Port RJ45 with integrated activity LEDs
100Mbit/sec (recommended cable CAT5e SF/UTP)
Dedicated for EtherCAT master
USB 2x USB 2.0 host ports
Type A connectors
200mA per port
SD Card Micro SD card slot
Supports Micro SD and Micro SDHC (high capacity) devices up to 32Gb
Display OLED graphical display
Indicator Lamps 2x status LEDs
Performance Number of axes 8 Axes at 125µs
16 Axes at 250µs
32 Axes at 500µs
64 Axes at 1 ms
128 Axes at 2 ms
128 Axes at 4 ms
512 + 512 I/O Channels
EtherCAT Communications Update Rate 125µs, 250µs, 500µs, 1ms, 2ms, 4ms
Jitter < 5us
Profiles supported CoE (CSP, CSV, CST, TP), FoE
Maximum PDO telegram 1514 bytes @ 2 ms and above
986 bytes @ 1ms
896 bytes @ 500us and below
Cable Category 5, Shielded/Foiled Twisted Pairs (CAT5e SF/UTP)
Run mode Distributed Clock (DC) or Free Run mode
Flex-7
EtherCAT logo  Specification
Speed 100Mbps
Physical Layer 100BASE-TX full duplex (IEEE 802.3)
Cable Shielded Twisted Pair (TIA/EIA-568B CAT5e)
Topology Line, tree or star (1)
Isolation Pulse transformer with common-mode choke
Connector RJ45
Cable Length 100m max between nodes
Supported Cyclic period 125µsec, 250µsec, 500µsec, 1000µsec, 2000µsec, 4000µsec
Synchronisation Distributed Clocks technology.  Jitter < 5µsec
Protocol CoE, SoE (2)
Number of Axes 128
Number of Nodes 128 slave nodes maximum
Motion modes Cyclic Synchronous Position, Cyclic Synchronous Velocity, Cyclic Synchronous Torque
Parameter transfer CoE Object read/write.  SoE IDN read/write
Input/Output Up to 1024 input bits and 1024 output bits

(1) Tree and star require the use of EtherCAT switches.
(2) CanOpen application protocol over EtherCAT. (CoE)
Servo drive profile according to IEC 61491 over EtherCAT. (SoE)
