MC4N-RTEX Mini Master

P906 (2 Axis) | P907 (4 Axis) | P908 (8 Axis) | P909 (16 Axis) | P910 (32 Axis)

The MC4N-RTEX extends the MC4N range of Motion Coordinators for networked drives which started with the MC4N-ECAT. It is dedicated to running remote servo drives via Panasonic's RTEX Real Time EXpress automation bus. It is based on an up-rated version of the 532MHz ARM processor with VFP3 and  is available with configurations from 2 to 32 axes making it ideal for high axis count machines or robotic applications.

MC4N-RTEX

Highlights

  • Up to 32 RTEX Digital Drive Axes
  • Supports Position, Speed and Torque Drive Modes
  • Up to 1024 I/O
  • Linear, Circular, Helical and Spherical Interpolation
  • Flexible CAM shapes, Linked Motion
  • Isolated Encoder Port
  • Biss, EnDAT and SSI Absolute Encoder Supported
  • Hardware Linked Output for Camera / Laser Control
  • Ethernet-IP / Modbus TCP / Trio ActiveX / Uniplay HMI / UDP / Ethernet Interface Built-In
  • Precise 64Bit Motion Calculations with 532MHz ARM 11 Processor
  • IEC 61131-3 Programming
  • Multi-tasking BASIC Programming
  • Text File Handling
  • Robotic Transformations
  • 4 high speed registration inputs
  • Isolated RS232 and RS485 ports
  • SD Memory Card Slot
  • CANopen I/O Expansion
  • Backlit LCD Display
  • RoHS and CE Approved

RTEX

MC4N

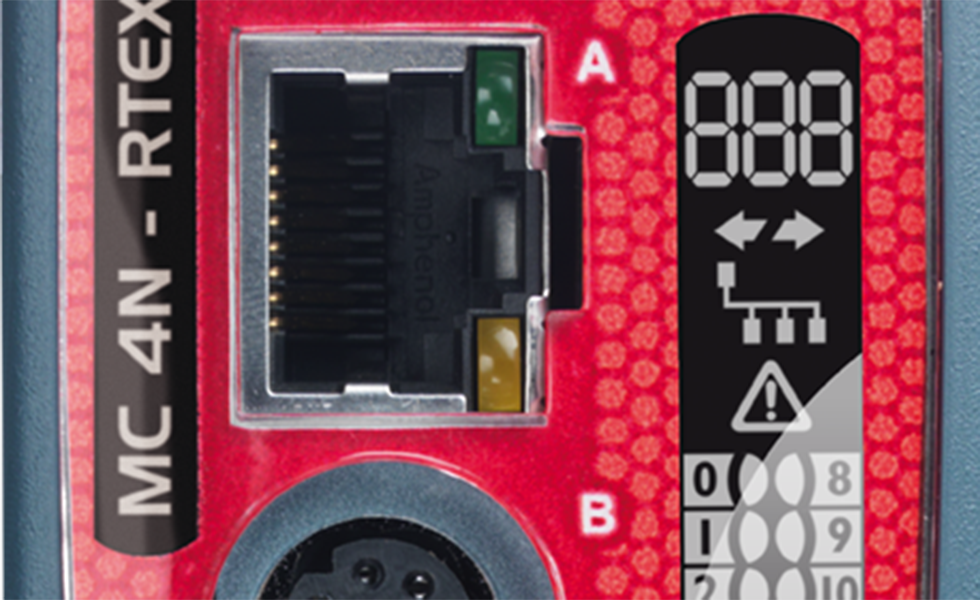

The built-in Ethernet port allows programming and connection of common PLC and HMI protocols, including the Trio Uniplay range of HMIs, directly to the MC4N-RTEX. The bright easy to read backlit display enables the controller status to be easily determined

Easy to use

MC4N

The MC4N-RTEX supports up to 32 axes of motion with 64 bit integer position registers for ultra precise axis resolution. RTEX slave drives can be connected and run in cyclic synchronous position, speed or torque modes provided these are supported by the drive.

Expandable

MC664-x

Versions of the MC4N-RTEX are available for 2, 4, 8, 16 and 32 motor axes. All versions feature 32 software axes any of which may be used as virtual axes if not assigned to RTEX hardware. Every axis can be programmed to move using linear, circular or helical or spherical interpolation, electronic cams, linked axes and gearboxes. The power of the controller allows for multiple robotic transformations to run simultaneously.

I/O can be connected via the CAN port on top the MC4N making expansion quick and easy.

Easy Set-Up, Easy Programming

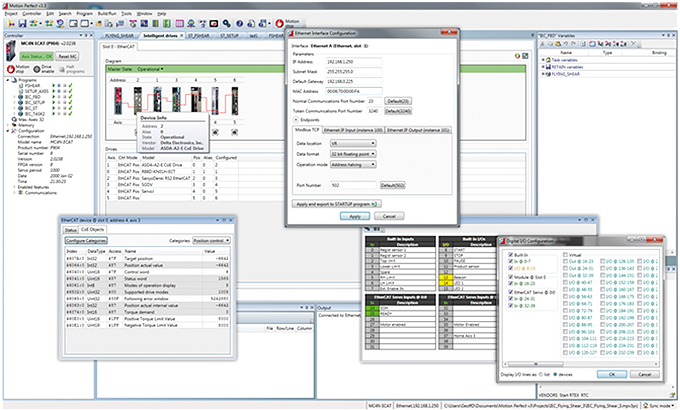

Programming the MC4N is identical to using traditional analogue axes with the addition of being able to set up drives and process alarms over the RTEX bus. With everything programmed from one place, machine control has never been so simple. Connecting to Panasonic drives is made easy with Motion Perfect's Intelligent Drives window.

User programs can be written in Trio’s established multi-tasking TrioBASIC language using the powerful Motion Perfect application development software making complex motion easy. The industry standard IEC 61131-3 languages are available as an option, allowing a fully functional PLC programming system.

MC4N-RTEX
Product P906
MC4N-RTEX
Description 32 axis panel mounted motion coordinator for Panasonic RTEX
Name MC4N-RTEX
PCode P906
Status Current
Configuration P906
MC4N-RTEX
Axis 0 Extended
Axis 1
Axis 2
Axis 3
Axis 4
Axis 5
Axis 6
Axis 7
Axes P906
MC4N-RTEX
Max axes 32
Max networked axes 32
Max virtual axes 32
Max discrete wired axes 1
Performance P906
MC4N-RTEX
Cores 1
Processor ARM11
Clock frequency 532 MHz
Maths precision IEEE 457 Double
Position register precision 64 bit
Execution benchmark 51 lines/ms
Real-time clock Yes
Flash memory 32 x 16000 values
User memory 8 MB
Table memory 512000 values
Min expected flash memory life (normal use) 42 years
Maximum VR variables 4096
Maximum servo period 1000 µs
Minimum servo period 500 µs
Maximum encoder input frequency 6.000 MHz
Maximum stepper output frequency 2.000 MHz
Drive interfaces P906
MC4N-RTEX
Auxilliary axis No
EtherCAT No
Hydraulic No
Piezo No
Panasonic RTEX Yes
SERCOS No
Servo No
SLM No
Step & direction Axis0
Communications P906
MC4N-RTEX
Anybus No
Bluetooth No
CANopen Yes
CC-Link No
DeviceNet Yes
Ethernet Yes
EthernetIP Yes
Hostlink Yes
MODBUS-RTU Yes
MODBUS-TCP/IP Yes
Profibus Yes
ProfiNet No
RS232/RS485 Yes
USB 1.1 No
Encoder ports P906
MC4N-RTEX
Feedback input No
Incremental (A+B) output Yes
Pulse & direction output Yes
Reference input Yes
SSI Absolute Input Yes
EnDat Absolute Input Yes
Tamagawa Absolute Input Yes
BiSS Absolute Input Option
Internal I/O P906
MC4N-RTEX
+/-10V analogue outputs 0
Analogue output precision 12 bits
Analogue Inputs (0-10V) 0
Analog input precision 12 bits
Digital Bidirectional I/O (24V) 8
Digital Inputs (24Vdc) 8
Digital outputs (24Vdc) 0
Registration inputs 4
Registration speed 1 µs
Watchdogs 1
Watchdog rating 29V, 100mA max
External I/O P906
MC4N-RTEX
+/-10V analogue outputs 16
Analogue output precision 12 bits
+/-10V analogue inputs 32
Analogue input precision 12 bits
Digital I/O points 1024
Programming P906
MC4N-RTEX
Trio BASIC Yes
DXF in Yes
G-Code Yes
HPGL Yes
IEC61131 Yes
Kinematic Option
Maximum programs 64
Maximum tasks 22
Software P906
MC4N-RTEX
Motion Perfect version 4
Expansion P906
MC4N-RTEX
Expansion module type None
Maximum modules 0
Memory card SD
Physical P906
MC4N-RTEX
Maximum operating temperature 45 °C
Minimum operating temperature 0 °C
Mount Panel
Depth 120.0 mm
Height 157.0 mm
Width 40.0 mm
Weight 432 g
Power P906
MC4N-RTEX
Supply current 350 mA
Supply tolerance
Supply voltage 24 V
Certification P906
MC4N-RTEX
CE Yes
RoSH Yes
UL Yes
P906

Axis Configuration Key

Core functionality

CORE AXES – can be configured in software as pulse and direction outputs with stepper or servo drives. They can also be configured for incremental encoder feedback.

Core functionality is a set of ATYPEs (Axis TYPEs) that are available on all controllers. They are based on pulse outputs and incremental encoder feedback.

ATYPE Description
43 Pulse and direction output with enable output
45 Quadrature encoder output with enable output
63 Pulse and direction output with Z input
64 Quadrature encoder output with Z input
76 Incremental encoder with Z input
78 Pulse and direction with VFF_GAIN and enable output 1
Extended functionality

EXTENDED AXES – in addition to the Core functionality these axes can also be configured for absolute encoders and closed loop servos (requires voltage output).

Only axes marked as AS have an analogue output and can be used for closed loop control.
All Extended Axes can use these ATYPE's as feedback.
If you want to just use the feedback and not complete a closed loop servo system set SERVO = OFF

ATYPE Description
30 Analogue feedback Servo
44 Incremental encoder Servo with Z input
46 Tamagawa absolute Servo
47 Endat absolute Servo
48 SSI absolute Servo
60 Pulse and direction feedback Servo with Z input
77 Incremental encoder Servo with enable output
92 Biss absolute servo
