Trio • Robotic Programming System

The Complete Automation Solution for Machine and Robot

The Trio Robot Programming System or Trio RPS, brings robotics automation to everyone, with a great user experience and incredible fast setup.
The Trio RPS is a sophisticated package of tools and software that can be adapted to different robot manufacturer’s requirements, adding high value to your production line thanks to the combination of advanced motion control and industrial robotics.

The package is made up of:

Trio BASIC-R

TrioBASIC-R is an extension of Motion-ix (TrioBASIC), specially designed for the control of industrial robots, with the main focus on an improved programming experience.

Thanks to its intuitive set of instructions and flexible coordination with Motion-IX, creating robot programs has never been easier.

TPS

From experienced robot programmers to novices, the Teach Programming System (TPS) gives a great program environment to accomplish complex tasks in no time.

TPS allows programming and operation of the robot in a managed and safe environment, as well as to debug and check the status of the production line.

TPS can be used along with Trio's hardware Teach Pendant (P955) or virtual pendant as part of the offline programming environment.

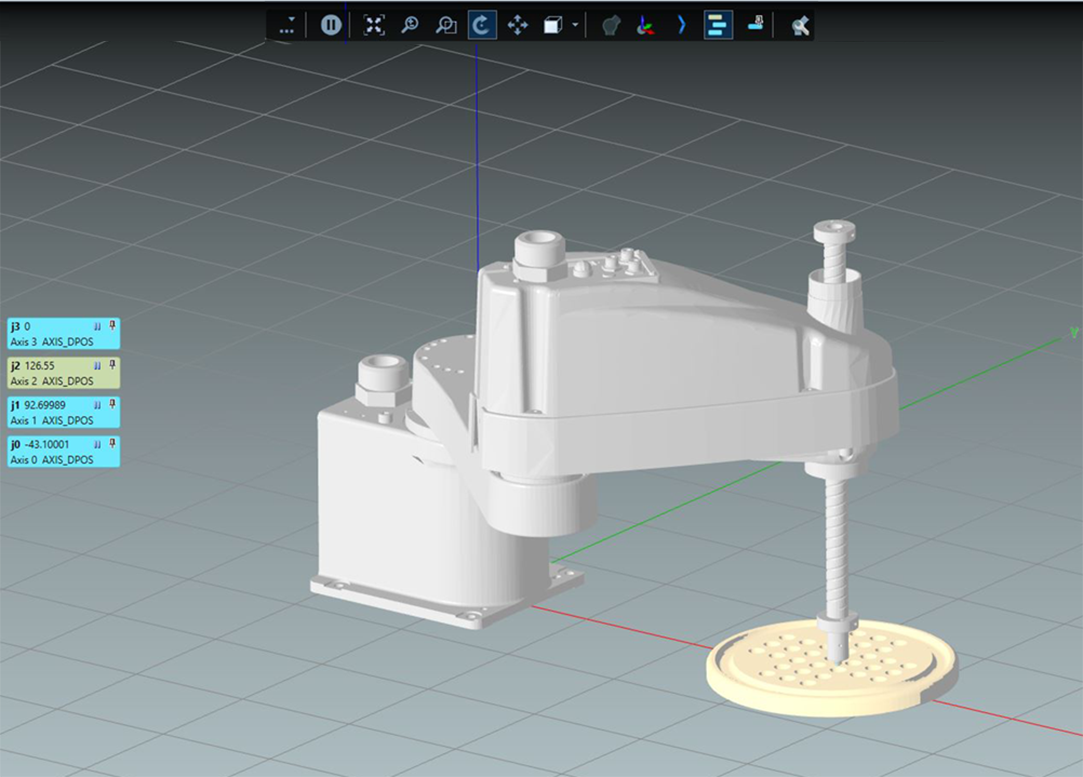

Visualization tool

3D Visualization tool enables you to upload a 3D CAD model and animate your robot, visualizing all the programmed movements.

Binding 3D objects with real axes provides an accurate real time representation of robot programs for high performance systems.

Robotics Toolbox

Robotics Toolbox is a collection of tools that comes with Motion Perfect v5, enabling users to:

Setup a robot from a simple data sheet via a step-by-step process, avoiding coding errors and simplifying the process.

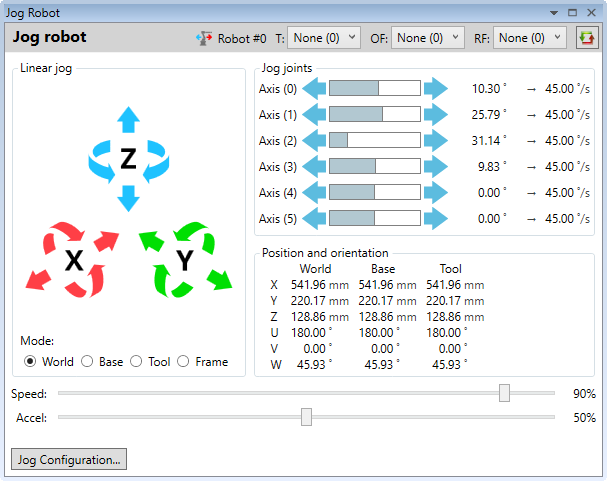

Accurately jog the robot in multiple coordinate systems with real time data.

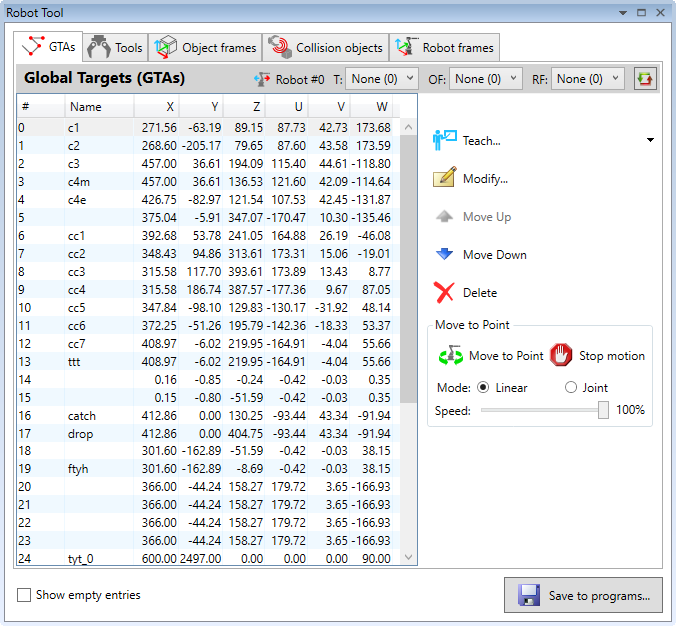

Teach and test target points as well as calibration tools and object frames.
The Robot Tool can help programmers code robot programs showing targets and frames in a simple way from a single tool.

Types of Robot Supported:

4 Axis SCARA

4 Axis Palletiser

6 DOF Mini-Arm

Recommended Controllers:

Software Requirements:

Motion Perfect v5.0 and above

Controller Firmware: 2.0303 and above

Please click on "Software" tab above to download.

The Teach Programming System is an optional package that allows programming the robot in a managed and safe environment, using a real or virtual system.

TPS Package options

Highlights

The pendant is based around Trio’s UNIPLAY HMI and can be used as a “real” or “virtual” on-screen pendant. The system includes extensive software and preconfigured motion control functions, which permit the controlling of all standard types of robot with reduced development time.

The system allows the user to:

Jog your robot safely in different modes
Insert tools and calibrate them
Insert robot frames and object frames
Create and edit robot programs
Debug robot programs adding break points and running it step by step
Run the robot program in a repeat cycle

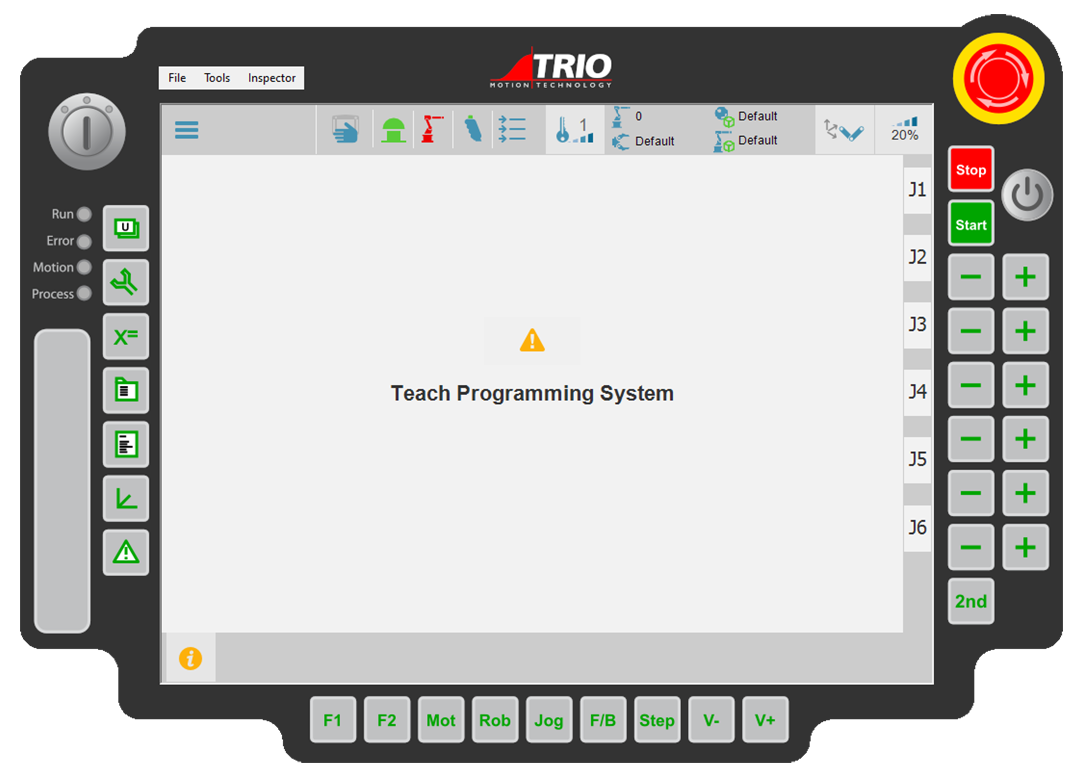

Virtual Pendant (included)

The virtual Pendant is included in Motion Perfect v5 and allows all the functionality of the P955 hardware pendant.

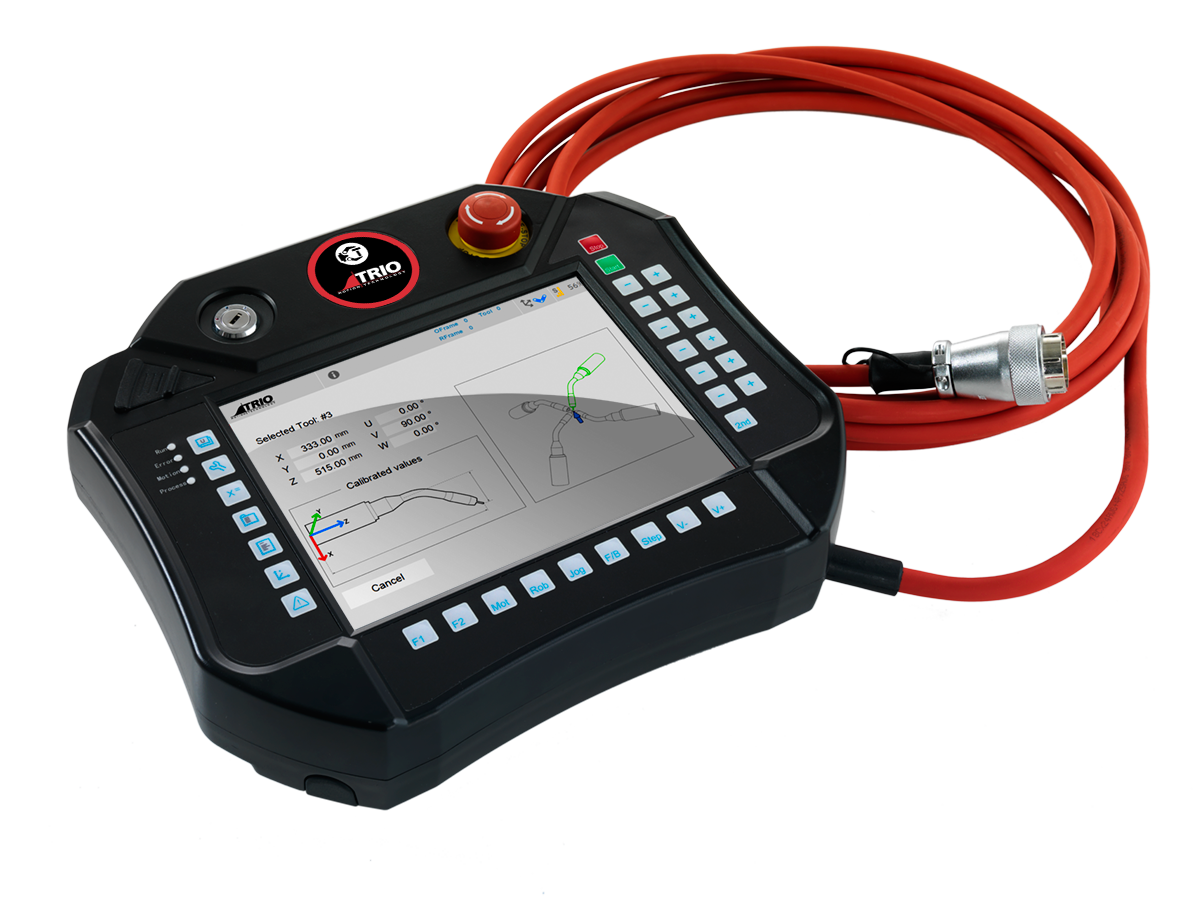

Hardware Pendant (option)

The P955 Hardware Pendant is an optional seperate purchase and requires the RPS software to run. The P955 includes all the safety systems needed to control a "real" robot.

Pendant Hardware (P955)

Processor	32 bit RISC Cortex
Memory	512 MB DDR
Micro SD card	Up to 32 Gb
Display	8" (640 x 800) touch screen
Pendant Software	Windows CE Embedded 7
Membrane Keys	31 user definable keys (with Motion Perfect 4)
Communication	Ethernet USB 2.0
Stylus	Included
Safety Hardware	Front mounted 3 position E-Stop. 2 x rear mounted 3 position enable switch.
Protection Rating	IP65
Input Voltage	24V DC via junction box (included)

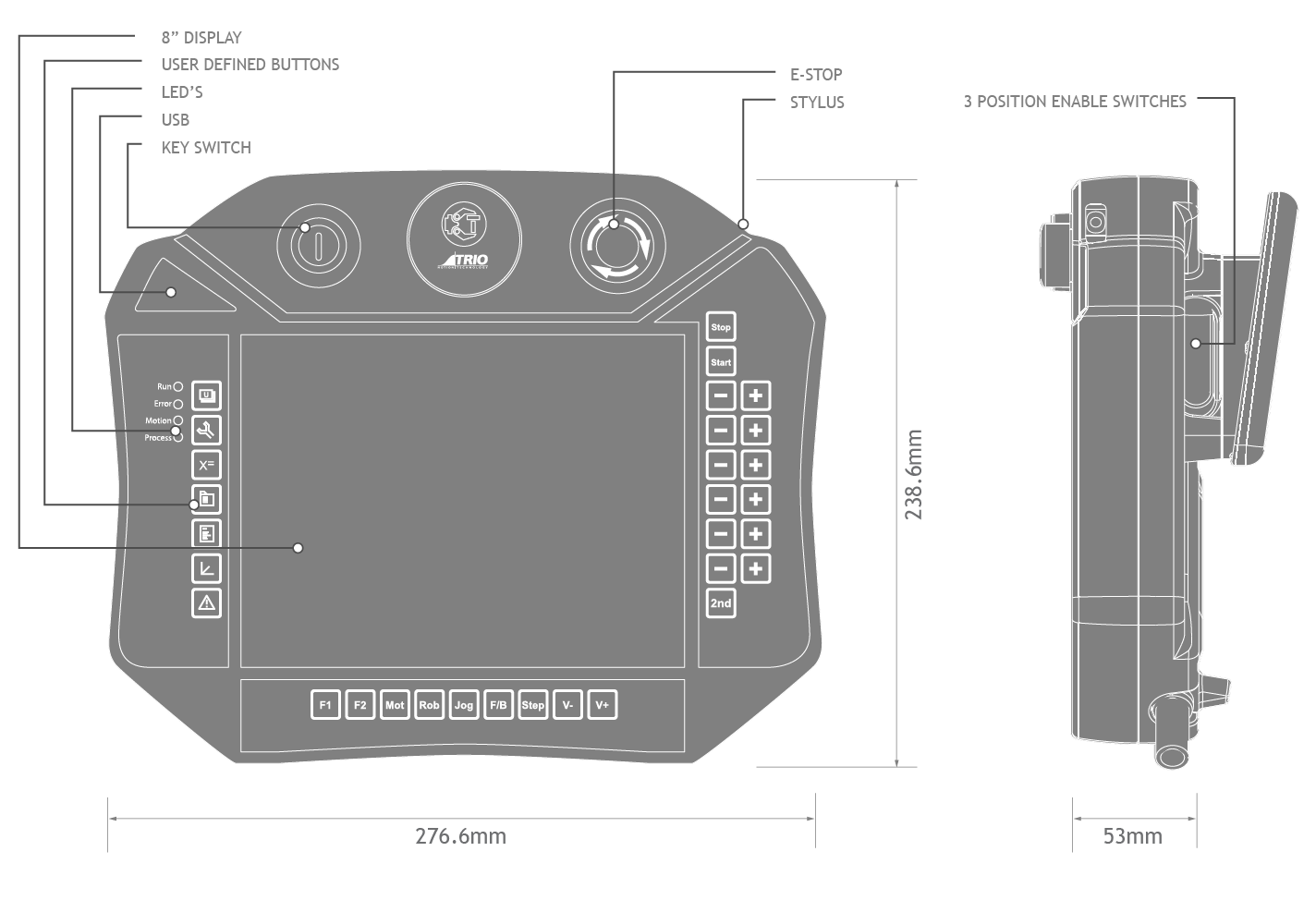

Size (w x d x h) mm	276.6 x 53 x 238.6
Weight	2kg
Cable	5m 26 pin shell type. RoHS compliant (connects to supplied Pendant Breakout Module box)
CAD Model	P955 CAD Model of Teach Pendant _{(log in)}
Dimensioned drawing of the Teach Pendant Breakout Module including Pin- Out information.	Teach Pendant Breakout Module _{(log in)}
Quick Start Guide	Quick Start Guide _{(log in)}

Download Motion Perfect

Latest USER Release:

File:	MotionPerfect_5_4_5_31010_Setup.zip
Version:	5.4.5.31010
Size:	319134673 bytes
Date:	2024-Oct-18

Download Controller Firmware:
All Controller Firmware _{(log in)}
Controller Firmware required: 2.0303 and above. Select your controller from the list.

Guides and Help
Trio Support & Forum	Knowledge base and help forum
Videos _{(log in)}	Videos to get you started

Manuals	Reading Order
RPS summary.pdf _{(log in)}	1. RPS 1.5 - Summary. IMPORTANT - Read this first
RPS Robot Setup and Configuration.pdf _{(log in)}	2. RPS Robot Setup and Configuration.pdf
TPS Teach pendant Setup and Configuration.pdf _{(log in)}	3. TPS Teach pendant Setup and Configuration.
RPS quick run.pdf _{(log in)}	4. RPS quick run.
RPS Reference guide.pdf _{(log in)}	5. RPS Reference guide.
TPS Reference guide.pdf _{(log in)}	6. TPS Reference guide.
RPS 1.5 - Release notes.pdf _{(log in)}	RPS 1.5 - Release notes.
Teach Pendant Breakout Module _{(log in)}	Dimensioned drawing of the Teach Pendant Breakout Module including Pin- Out information.

Certificates
CE Certification	P955 Teach Pendant
CE Test Report	P955 Teach Pendant
