Overview

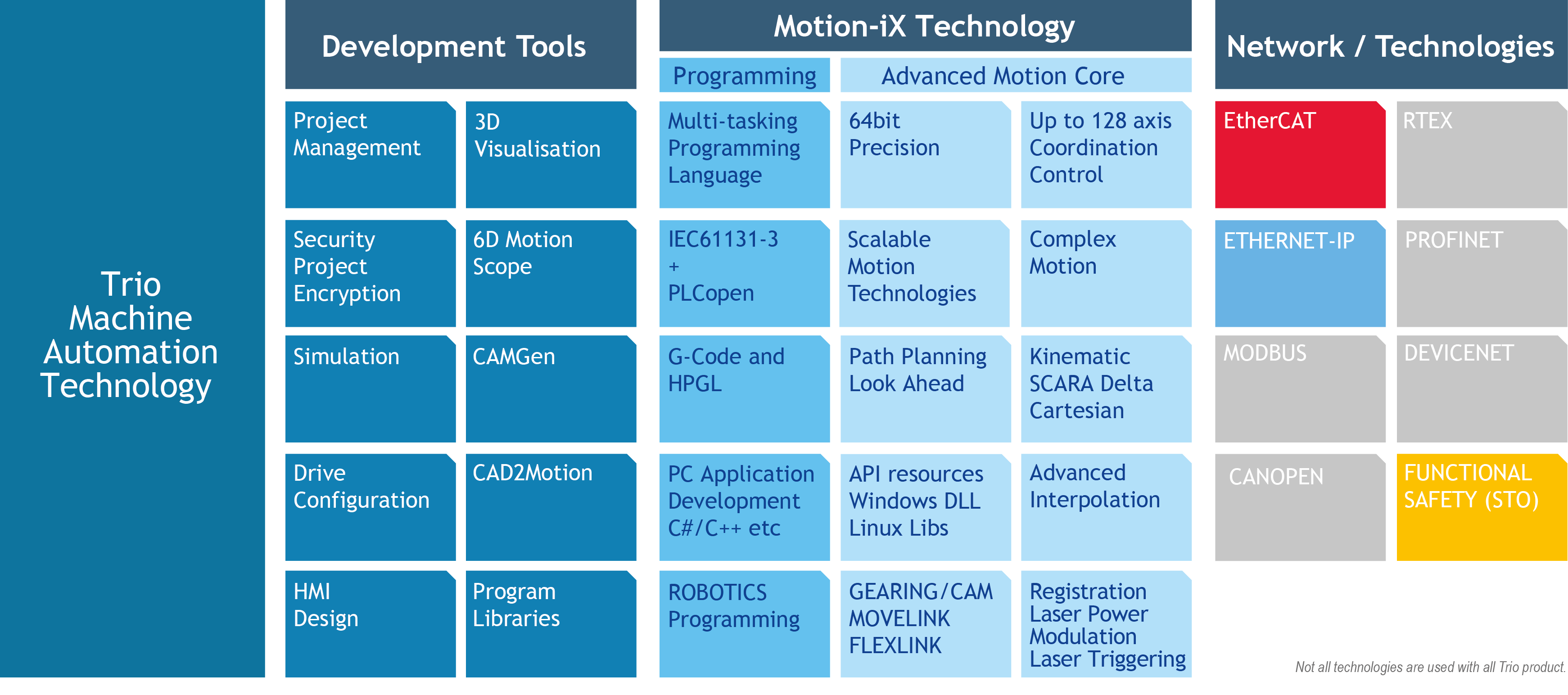

Motion-iX – a unified software engineering framework for machine development, that places the focus on optimising motion and complex kinematics, including robotics such as SCARA, to deliver truly optimal machine control performance.

Motion-iX includes development in IEC61131 and PLCopen, and boasts inverse kinematics capabilities to truly coordinate all machine axes as one, including robots to maintain tight synchronisation or robots and machine as one.

Virtualization allows simulation of the mechanics and motion to significantly reduce development and testing, delivering optimal control every time, by minimising machine cycle times.

Motion-iX

Motion Perfect

A single programming interface for motion and machine control up to 128 axes of coordinated motion, Motion Perfect is designed to make setup, diagnostics, commissioning and using our range of Motion Coordinators as simple as possible. Motion Perfect provides the user with an easy to understand Windows based interface for rapid application development, controller configuration and monitoring of controller processes. The integrated UNIPLAY system makes HMI screen development quick and easy.

Trio Programming Language

The Trio Programming Language, with a powerful suite of instructions and tools developed over 24 years, makes even the most advanced motion programming easy. It provides ease of programming for many complex applications. With multitasking and subroutine capabilities, it allows users to create modular programs, ideal for code reuse and better readability thus saving valuable time. The syntax is similar to that of other BASIC family languages.

IEC61131-3

The built in industry standard IEC 61131 runtime, is an easy to use full function PLC programming system. The standard is already well established in Europe and is rapidly gaining popularity in North America and Asia as the programming standard for industrial control.

Trio Programming Language

Features

  • Suite of languages for easy standalone machine programming
  • Fully integrated with Trio’s Motion Perfect application development software
  • Comprehensive motion control functions for multiple axes
  • Multi-tasking of multiple programs for improved software structure and maintenance
  • Support for traditional servo or stepper axes as well as modern digital (Sercos, EtherCAT etc) axes
  • A comprehensive set of move types supporting multiple axis coordination as well as simple single axis moves.
    This includes linear, circular, and spherical interpolation as well as cam profiles and software gearboxes
  • Real maths (up to 64 bit) including bit operators and variables
  • Support for hardware position capture
  • Support for high speed outputs

A PC running the Microsoft Windows™ operating system is used to develop and test the application programs which co-ordinate all the required motion and machine functions using Trio’s Motion Perfect software. Motion Perfect provides all editing and debugging functionality needed to write and debug applications written in Trio Programming Language. The completed application does not require the PC in order to run.

One of the many strengths of Trio Programming Language is that a program written for an entry level Motion Coordinator can be run, with only minimal modification on the highest performance Motion Coordinator. This portability extends even to users requiring upgrades for older Motion Coordinators where the core functions of a program written in TrioBASIC over a decade ago will still run on the latest hardware platforms.

All standard program constructs are provided; variables, loops, input/output, maths and conditions. Extensions to this basic instruction set exists to permit a wide variety of motion control facilities, such as single axis moves, synchronised multi-axis moves and unsynchronised multi-axis moves as well as the control of the digital I/O.

All Trio controllers feature Trio Programming Language. Multiple programs can be constructed and run simultaneously to make programming of complex applications much easier.


Example of Trio Programming Language

An example of Trio Programming Language is MOVELINK which can be used in synchronization of conveyors, flying shears, thread chasing and taping and coil winding.

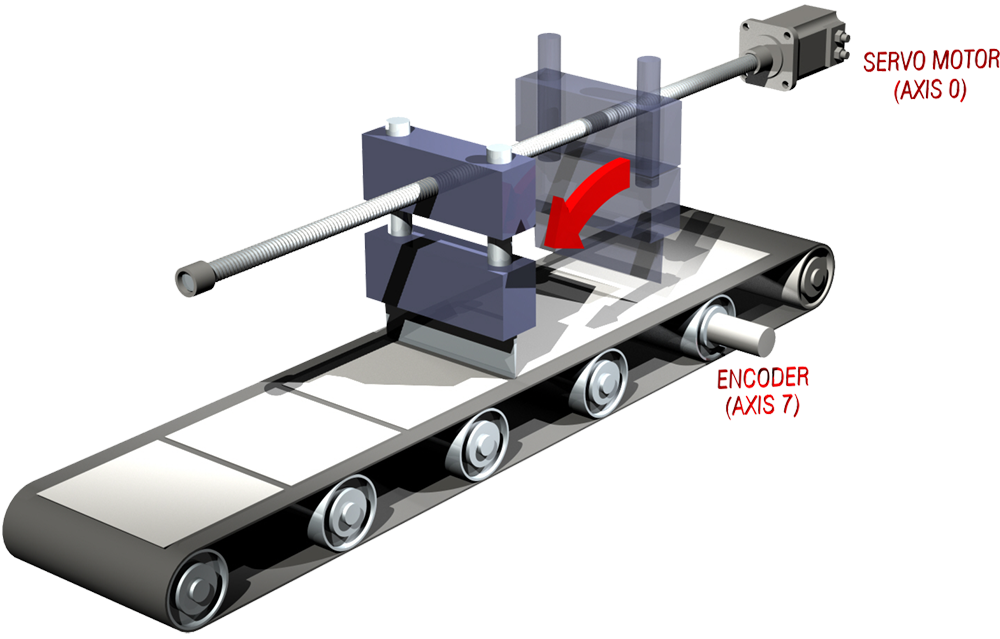

In this example, a flying shear cuts a long sheet of paper into cards every 150mm whilst moving at the speed of the material. The shear is able to travel up to 1.2 metres of which 1m is used in this example. The paper distance is measured by an encoder, the unit conversion factor being set to give units of metres on both axes.

(Note that axis 7 is the link axis (master axis))

The program for this example is:

			WHILE IN(2)=ON
  MOVELINK(0,150,0,0,7)          'dwell (no movement) for 150mm
  MOVELINK(0.3,0.6,0.6,0,7)      'accelerate to paper speed
  MOVELINK(0.7,1.0,0,0.6,7)      'track the paper then decelerate
    WAIT LOADED                  'wait until acceleration movelink is finished
    OP(8,ON)                     'activate cutter
    MOVELINK(-1.0,8.4,0.5,0.5,7) 'retract cutter back to start
  WAIT LOADED OP(8,OFF)          'deactivate cutter at end of outward stroke
WEND
flying shear

IEC 61131-3

Features

  • Standard language can be used by any programmer who is already familiar with IEC 61131-3
  • Choice of graphical or textual programming while attaining consistent results
  • Visual interactive debugging information
  • Real-time program execution
  • Powerful and familiar Trio Motion function block library
  • Program editor is built-in to MotionPerfect
  • Multi-tasking operation with user selectable priorities

The adoption of IEC 61131-3 by the industry is driven by the needs of control and automation designers to reduce the creation time, labour cost, and maintenance of control software.

Using the IEC 61131-3 vendor-independent programming language standard can have a major impact on control projects and applying a standard programming language has a positive impact on the software life-cycle; including specification, software design, testing, installation, operation, and maintenance.

The impact on maintenance is important since control software maintenance, including upgrades, can cost more than the initial programming.

Click here for the Trio Application note on Getting Started with IEC 61131

Click here for the: IEC 61131-3 datasheet.pdf


Programming languages

In IEC 61131-3, five standard programming languages are defined, including syntax and semantics, so that once you have learned the five languages, you can use a wide variety of systems based on the standard. Motion Perfect supports 4 of the five languages:

  • Ladder (LD)
  • Function Block Diagram (FBD)
  • Structured Text (ST)
  • Sequential Function Charts (SFC)

The less popular Instruction List (IL) is not supported because it is less relevant to motion control programming.

Edit and de-bug

Motion Perfect has a full function text and graphical editor with context specific toolbox and variable definitions.  The function block editor has drag-and-drop capability to make programming easy and intuitive.  User prompts allow first-time users to see exactly what is required when inter-connecting functions and variables.

In de-bug mode, the variable values are shown in place on the diagram, giving immediate feedback to the programmer about the state of the program.  Other Motion Perfect tools can be open at the same time as the IEC 61131-3 pages, so inputs, outputs axis parameters and global variables can all be viewed in real-time during the debug process.

Motion Functions

A dedicated library of Motion Functions provides the IEC 61131-3 program full access to Trio’s established motion software which has stood the test of time and been proven in thousands of applications.  All the functions that are available in Trio Programming Language are also accessible from the IEC 61131-3, using any of the supported programming languages.  Whether it is simple point to point, interpolated moves or gears and cams, the IEC 61131-3 programmer can do it.

Below is a flying shear example (as used in the Trio Programming Language section) using the FDB language.

PLC type performance

Each IEC 61131-3 task can be set independently to run at its own tick rate, or to be run continuously.  Important tasks that are running fast motion can be set to run at intervals of just a few milliseconds, while less important background tasks can be run with a cycle time of 20, 30, 50 and more msecs.

In this way the whole system can be balanced and cycle times set for best operation. The cyclic processing of IEC 61131-3 tasks is familiar to established PLC programmers, whether using ladder, structured text or function block.
