Introducing DX3...
Trio's Cost Optimised Conventional Servo Drive

DX3

At A Glance

  • Fully integrated into Motion Perfect
  • Matched with MX motor range
  • Internal drive protection functions
  • Comprehensive tuning technology
  • Field upgradable firmware
  • Electronic nameplate
  • Compact size
  • Zero stacking
  • USB commissioning
  • Keypad interface
  • 200V ac from 50W to 2kW
  • 480V ac from 1kW to 7.5kW
  • 350% overload
  • 2 Touch Probe inputs
  • Preset positions, up to 32 stored positions - Pulse & Direction, Analogue or CANopen control

    • Compatible MXL Motors
    Compatible MXM Motors

DX3, the single-axis ac servo drive, is designed to create the most cost-effective optimised entry level solution with excellent performance and practical control functions. The Trio DX3 drive is compatible with Trio MX servo motors and Trio's Motion Coordinators to provide high-speed, high-precision, high performance machine solutions.


Download DX3 System Brochure



With a power range from 50W to 7.5kW and options for EtherCAT or Conventional (Pulse & Direction, Analogue and CANopen) control, DX3 will suit a wide variety of machine types.
DX3 is fully integrated into Trio’s application development tool, Motion Perfect, our software environment for system planning, configuration, virtualisation and machine programming.

space Efficient

Space Efficient

Compact single axis servo drive. Zero stacking to save panel space

Integration Efficient

Integration Efficient

Rapid application development of controller and drive configuration within Motion Perfect.

Design Efficient

Design Efficient

One system to program, simplifying development and any future production changes when required.

Cost Efficient

Cost Efficient

Developed to be cost optimised, entry level servo drive with either EtherCAT or Pulse/Direction, Analogue and CANopen interfaces.

choice

Your Choice

Options for EtherCAT or Conventional control to suit your machine types.

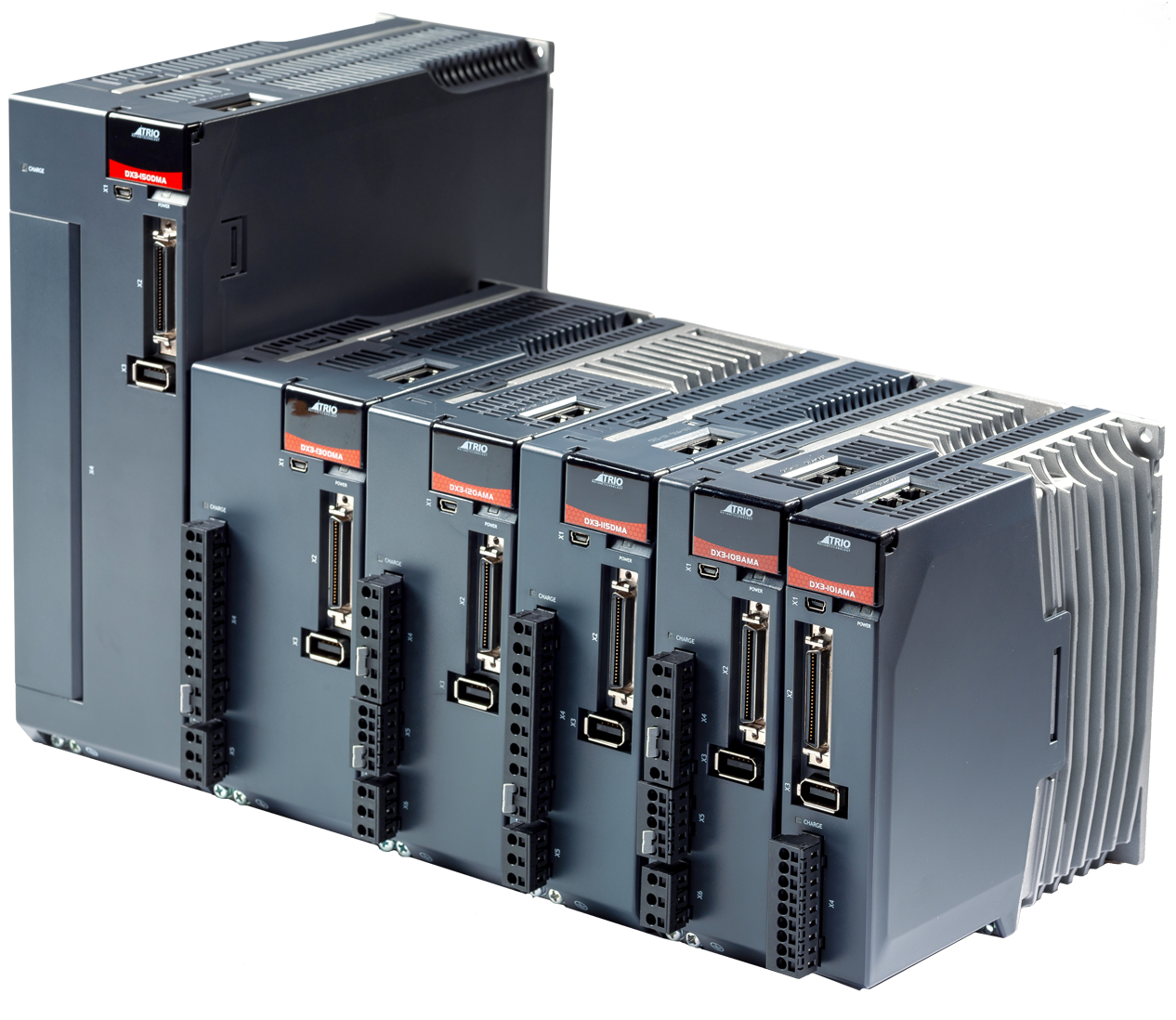

A Drive for Everyone

DX3 comes in power ratings from 50W to 7.5kW. Matched with the MX series motors it offers high-dynamic performance and high-precision with electronic nameplate to simplify configuration for machine solutions.

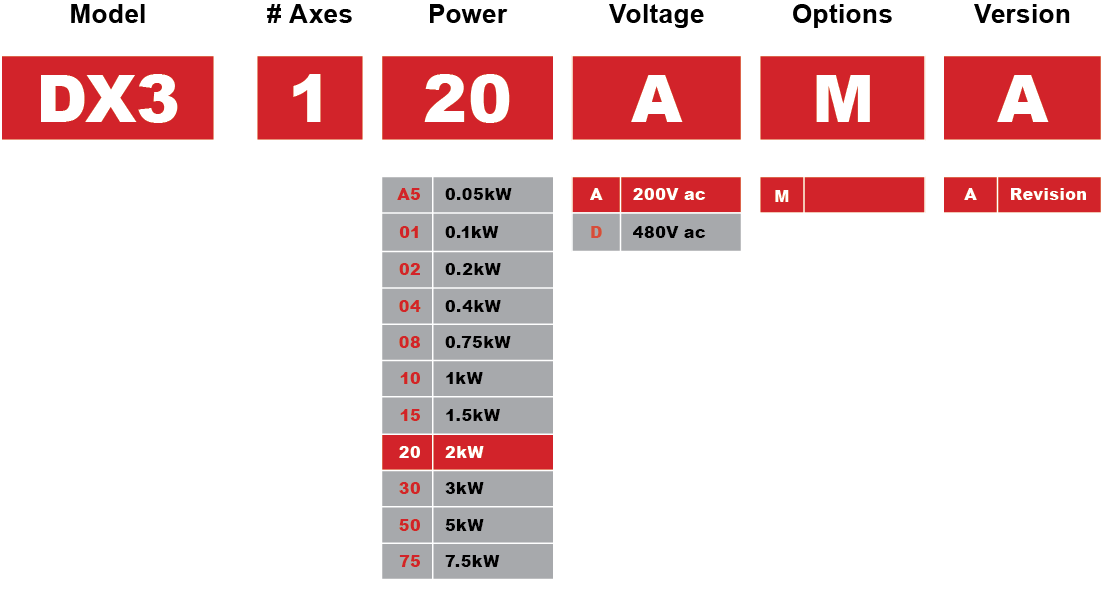

Specifing your Drive

DX3

Dimensions

200V Model Part# Output Power H (mm) W (mm) D (mm)
DX3-1A5AMA D3120 50W  172 40 180
DX3-101AMA D3121 100W  172 40 180
DX3-102AMA D3122 200W  172 40 180
DX3-104AMA D3123 400W  172 40 180
DX3-108AMA D3124 750W  172 55 180
DX3-110AMA D3125 1kW  172 55 180
DX3-115AMA D3126 1.5kW  172 70 180
DX3-120AMA D3127 2kW  172 70 180

Products ending with AMA / DMA = Conventional

400V Model Part# Output Power H (mm) W (mm) D (mm)
DX3-110DMA D3130 1kW 172 60 180
DX3-115DMA D3131 1.5kW 172 60 180
DX3-120DMA D3132 2kW 172 85 180
DX3-130DMA D3133 3kW 172 85 180
DX3-150DMA D3134 5kW 260 90 230
DX3-175DMA D3135 7.5kW 260 90 230

Products ending with AMA / DMA = Conventional

Power Specification

  Drive Model: DX3- 1A5A 101A 102A 104A 108A 110A 115A 120A
200V Continuous output current [Arms] 0.9 1.1 1.5 2.9 5.1 6.9 9.5 12.6
Maximum output current [Arms] 3.3 4 5.8 11.5 19.5 21 31.6 42
Main power supply unit capacity [kVA] (single phase) 0.2 0.3 0.6 1.2 1.9 2.6 4.0 *.
Main power supply capacity [kVA] (three-phase)         1.6 2 3 3.5
Drive Model: DX3-           110D 115D 120D 130D 150D 175D
480V Continuous output current [Arms]           3.6 5 7.1 12 17 27.3
Maximum output current [Arms]           10.9 16.3 24.7 37.8 53 70.7
Main power supply capacity [kVA] (three-phase)           1.8 2.8 3.5 5 8.2 12
*: When operating from a single-phase power supply for the DX3-15AEA (rated power 1.5 kW), please deratify to 1.2 kW
All Models specification
Input power 200VAC Single-phase AC 200V~240V, -15%~+10%, 50Hz/60Hz
Three-phase AC 200V~240V, -15%~+10%, 50Hz/60Hz (rated power 0.75kW)
480VAC Three Phase AC 380V~480V, -15%~+10%, 50Hz/60Hz
Control the power supply 200VAC Single phase AC 200V~240V, -15%~+10%, 50Hz/60Hz
480VAC Three phase AC 380V~480V, -15%~+10%, 50Hz/60Hz
Control mode   SVPWM control
Feedback   Serial communication encoder with MX motors
Terms of use Working environment Temperature: When using a single device: -5°C~55°C
Temperature: When multi-device is installed closely: -5 °C ~ 40 °C
Humidity: 5% to 95% RH (no condensation)
Storage environment Temperature: -20°C~85°C
Humidity: 5% to 95% RH (no condensation)
Protection class IP20
Altitude 1000m or less
Vibration resistant 4.9m/s2
Impact resistant 19.6m/s2
Power system TN system
Installation structure   Base mounting
Performance Speed control range 1：5000
Speed volatility The rated speed ± less than 0.01% (when the load fluctuates: 0% to 100%)
0% of the rated speed (voltage fluctuations: at ± 10%)
The rated speed is ± below 0.1% (temperature fluctuations: 25°C±25°C)
Soft-start settings 0 ~10s (acceleration and deceleration can be set separately)
I/O Input signal Operating voltage range: 24 VDC±20%
Number of input channels: 5 on AEG/DEG, 10 on AMG/DMG
Touch Probe: 2 input channels configurable as touch probe
Output signal Operating voltage range: 5 VDC to 30 VDC
Number of output channels: 3 on AEG/DEG, 5 on AMG/DMG
USB port Communication standards Conforms to USB 2.0 standard (12 Mbps), OTG
Commissioning Ports   USB
EtherCAT (CoE) (only avaliable on AEG/DMG)
Commisioning Software   Motion Perfect
Display   5-digit digital tube
Operator Panel   4 buttons
Indicator Lamps   CHARGE, POWER
Regenerative braking   Products with rated power of 50W to 480W do not have built-in braking resistors
Products with a power rating of 750W to 7.5kW have built-in braking resistors
Protection features   Overcurrent, overvoltage, undervoltage, overload, regeneration anomaly, overspeed, etc
Accessibility   Alarm recording, Jog operation, load inertia identification, mechanical analyzer, automatic tuning tools, etc
Conventional Only Specification
Torque Control Analogue Reference Reference Voltage +/-10V dc at rated torque
Max input voltage +/-12V
Input Impedance 10MOhm or above
Circuit Time Constant 10us
Torque Selection Presets 4 torque selections
Speed Control Analogue Reference Reference Voltage +/-10V dc at rated speed
Max input voltage +/-12V
Input Impedance 10MOhm or above
Circuit Time Constant 10us
Speed Selection Presets 32 speed selections
Position Control Pulse Reference Type Pulse + Direction
CCW + CW Pulse
A/B Quardature
Voltage 5V
Max Frequency 500kHz (differential)
200kHz (single ended)
CANopen CiA402 Drive Profile Homing mode
Profile position mode
Profile velocity mode
Profile torquemode
Interpolated position mode
Encoder output   Type A/B/Z Quadrature
Voltage 5V
Max Frequency 500kHz (differential)

Motors & Cables

Download the Trio Drive and Motor Selection table to allow easy selection of drive, motor, cables and connectors.
Use the drop-down menus to narrow down the selection.

Trio Drive and Motor Selection Table protected.zip

The download is a password protected .zip file. To un-zip, use the password ‘Trio2023’.
Software - Programming
Motion Perfect
Motion Perfect is designed to make setup, diagnostics, commissioning and using our range of Motion Coordinators as simple as possible. It provides the user with an easy to understand Windows based interface for rapid application development, controller configuration and monitoring of controller processes.
Drive Firmware - DX3
-1A5A, -101A, -102A, -104A
Latest USER Release:
File:DX3_DSP_APP_A_M_A000_V100B5.zip
Size:329466 bytes
Date:2025-Aug-04
Drive Firmware - DX3
-108A, -110A
Latest USER Release:
File:DX3_DSP_APP_A_M_B000_V100B5.zip
Size:329848 bytes
Date:2025-Aug-04
Drive Firmware - DX3
115A, -120A
Latest USER Release:
File:DX3_DSP_APP_A_M_C000_V100B5.zip
Size:329794 bytes
Date:2025-Aug-04
Drive Firmware - DX3
-110D, -115D
Latest USER Release:
File:DX3_DSP_APP_D_M_D000_V100B7.zip
Size:330002 bytes
Date:2025-Aug-04
Drive Firmware - DX3
-120A, -130A
Latest USER Release:
File:DX3_DSP_APP_D_M_E000_V100B7.zip
Size:330002 bytes
Date:2025-Aug-04
Drive Firmware - DX3
-150A, -175A
Latest USER Release:
File:DX3_DSP_APP_D_M_F000_V100B7.zip
Size:330064 bytes
Date:2025-Aug-04
