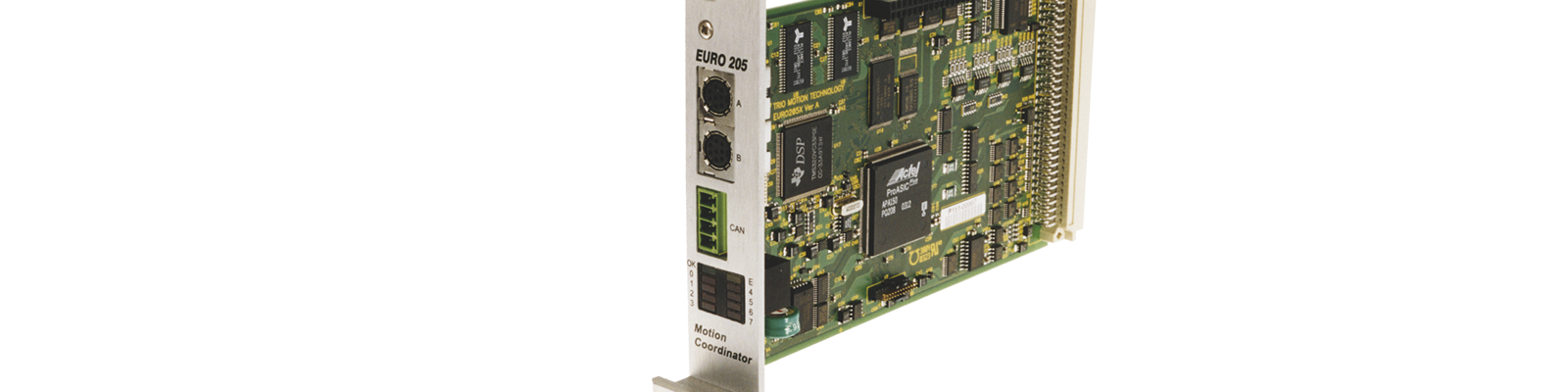

Euro205x

P151

Previous Generation : Suggested Alternative : Euro404 / 408

Not recommended for new projects!

To meet demand from large OEM customers for an economical multi-axis Motion Coordinator with a small footprint.

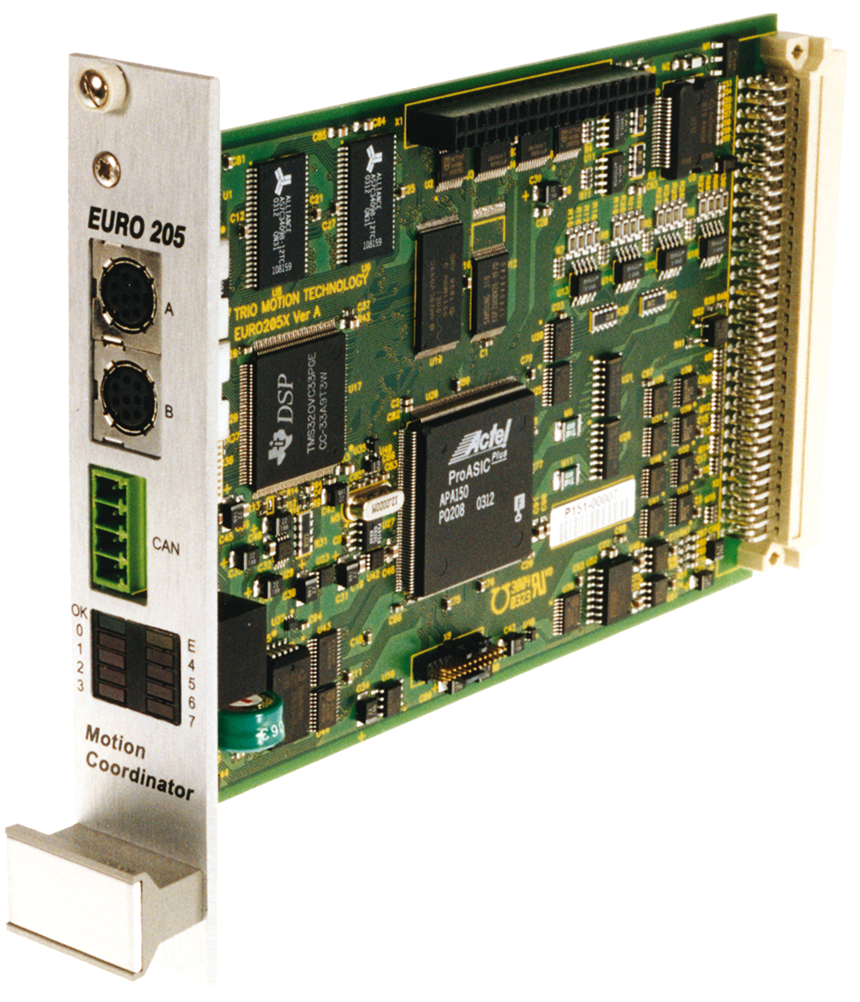

Euro205x

Highlights

  • High performance, low cost 1-4 axis Eurocard Motion Coordinator
  • Designed for low-cost OEM volume applications
  • 1-4 Servo/stepper axes in any combination
  • Multi-tasking TrioBASIC programming
  • Built-in CAN channel
  • Motion Perfect application development software
  • 160mm x 100mm Eurocard format
  • Configurable using feature enable codes

Programming

User programs are written in Trio’s established Multi-Tasking TrioBASIC and applications can be developed using the Windows based Motion Perfect environment. Complex motion profiles are easily programmed and these can be linked to a master encoder input for slaving, gearing and cams.

Communications

The unit has 24 opto-isolated digital I/O (16 inputs & 8 outputs) on board. 4 Fast hardware registration inputs are available on each axis for highly accurate control of print and packaging lines. 2 x 12 bit analogue input channels are provided on the board.

The I/O count can be expanded using Trio CANbus Digital I/O and Analog Input modules. The CANbus port also supports DeviceNet and CanOpen protocols. The Euro205x has two built in RS-232 ports. In addition, a full-duplex RS-485 channel is provided and a further serial channel is available at TTL levels.

An external adapter can be used to allow the TTL level serial port to link to Trio Fibre Optic Network devices.

Products - Expansion
RS232 serial Cable (P350) P350
Provides 4 +/-10V, 16 Bit outputs.  Includes 4 x 0-10V analogue inputs 12 Bit.
Serial to Fibre Optic Adaptor (P435) P435
Fibre optic adaptor to convert TTL port on MC224, MC206X and Euro205x series Motion Coordinators to Trio fibre optic network.
Products - CAN I/O Modules
CAN 16-Out I/O Module (P317)CAN
The Trio CAN16 Output module provides 256 distributed output channels at 24Vdc level. All points are short-circuit proof and completely isolated from the CANbus. P317 modules may be mixed on the same bus, with other types in the Trio CAN I/O range.
CAN 16-In I/O Module (P318)CAN
The Trio CAN16 Input module provides 256 distributed input channels at 24Vdc level. All input points are high level (24V in = ON) and completely isolated from the CANbus.
CAN16 I/O Module (P319)CAN
The Trio CAN16 Input/Output module provides 256 distributed bi-directional input/output channels at 24Vdc level. All input points are high level, (24V = ON) all outputs are short-circuit proof and the I/O is completely isolated from the CANbus.
CAN 8-In / 4-Out I/O Module (P326)CAN
The CAN Analogue I/O module provides a compact DIN rail mounted analogue input/output capability for Trio Motion Coordinators. Each module provides 8 channels of 12-bit (+/-10V) analogue inputs and 4 channels of 12-bit (+/-10V) analogue outputs.
CAN 8-Relay Module (P327)CAN
The Trio CAN8 Relay module provides 128 distributed low power relay channels at up to 30Vdc or 49Vac. All output points are Volt-free contacts and are completely isolated from the CANbus. P327 modules may be mixed on the same bus, with other types in the Trio CAN I/O range.
Products - Generic
UNIPLAY HMI (7") (P843)bolt on expansion module
Trio’s unique UNIPLAY HMI system is a revolutionary way to make operator interfaces better, easier and more secure! The UNIPLAY series boasts a 7" and 10" colour display.
UNIPLAY HMI (10") (P844)bolt on expansion module
Trio’s unique UNIPLAY HMI system is a revolutionary way to make operator interfaces better, easier and more secure! The UNIPLAY series boasts a 10" colour display.
Firmware - Euro205X
Normal
Latest USER Release:
File:K16738.ZIP
Version:1.6738
Size:172946 bytes
Date:2014-Jul-04
Look ahead
Latest USER Release:
File:K16738LA.ZIP
Version:1.6738
Size:175871 bytes
Date:2014-Jul-04
Software - Programming
Motion Perfect
Motion Perfect is designed to make setup, diagnostics, commissioning and using our range of Motion Coordinators as simple as possible. It provides the user with an easy to understand Windows based interface for rapid application development, controller configuration and monitoring of controller processes.
Software - Expansion
Additional Servo Axis (P406)
(Log on to E-Store to purchase).
Additional Encoder Input (P412)
(Log on to E-Store to purchase).
Additional Stepper Axis (P416)
(Log on to E-Store to purchase).
Software - Support Apps
CAD2Motion
The program allows the user to create motion paths in a CAD package such as AutoCAD and convert them into code executable by a Trio Motion Coordinator.
AutoLoader
A compact, self-contained package designed to allow simple distribution of projects written using Motion Perfect. Simply add the project to the Autoloader folder, edit a script file to provide control of the loading sequence and send to the customer.
Trio MCLoader
The Trio MC Loader is a Windows ActiveX control which can load projects (produced with Motion Perfect) and programs onto a Trio Motion Coordinator. Communication with the Motion Cordinator can be via serial link, USB, Ethernet or PCI depending on the Motion Coordinator.
Trio PCMotion
PCMotion is an ActiveX component allowing direct connection to the Trio Motion Coordinator from a custom user application. It can be used to control any of the Motion Coordinator functionality as well as send text files down to the controller.
TextFileLoader
The file loading functionality of the Motion Coordinators allows files to be easily loaded into the controller memory or the SD card (when fitted). This allows programs written in text based languages such as G-Code and HPGL to be loaded to the controller where they can be parsed and executed by a TrioBASIC program. The transfer process is optimized to compress the file and reduce transfer times, or it can be set to stream the file into a FIFO buffer on the controller. This can help reduce overall machine cycle times when file sizes can be large and so making communication time significant.
Guides
Data Sheet
Manuals
The Technical Reference Manual can be downloaded in here. All in PDF format.
Certificates
UL Listing Please insert E238097 UL File Number in the search box.
Wiring Guides
Euro205x-Mitsubishi Mrj3a SERVO-ENCODER.pdf
Euro205x-Yaskawa SigmaII SERVO-ENCODER.pdf
Euro205x-Yaskawa SigmaII STEPER-PULSE-DIRECTION.pdf
▴
