HMI

P561 (7")

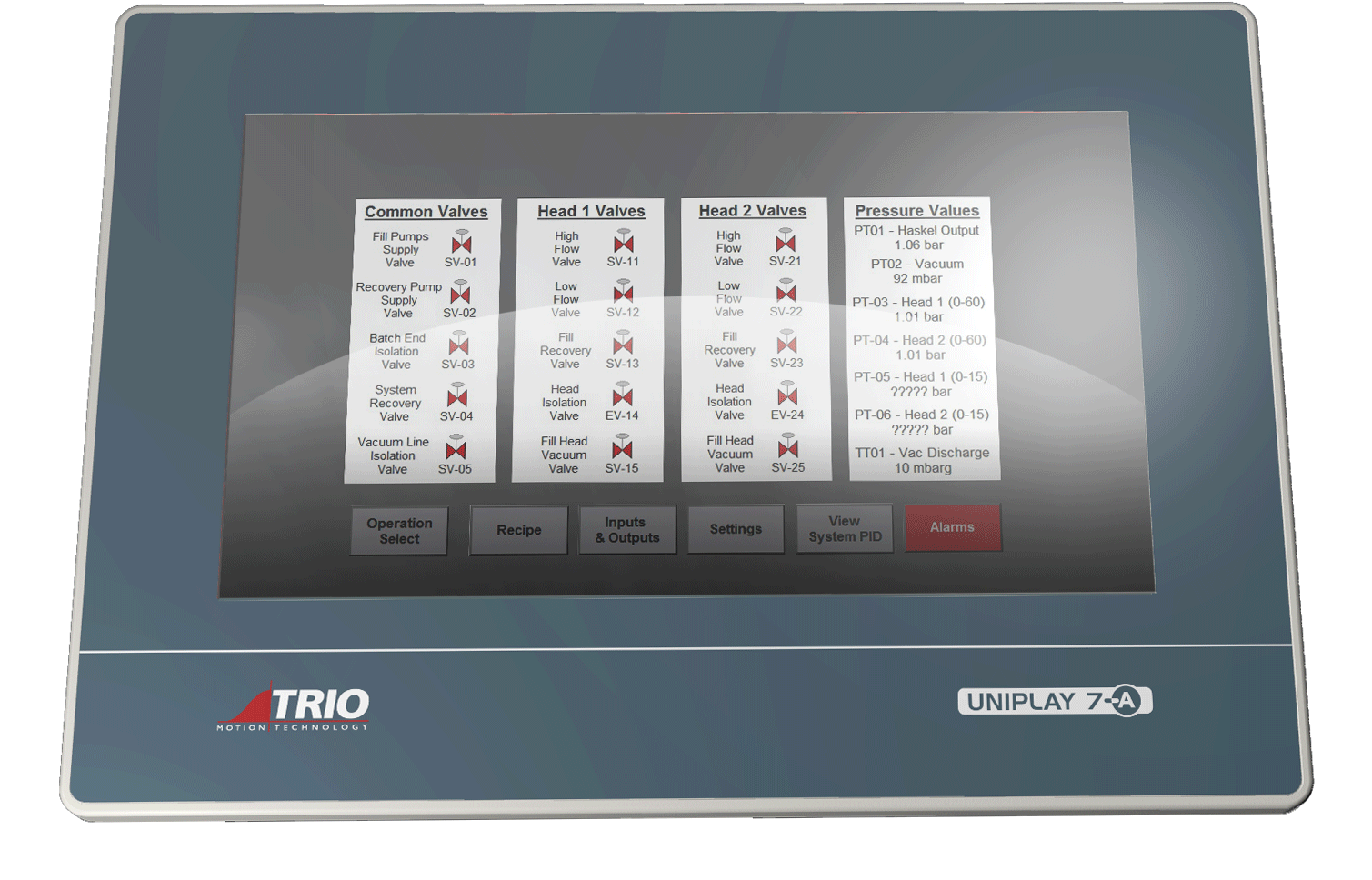

Trio's unique UNIPLAY HMI system is a revolutionary way to make operator interfaces better, easier and more secure! The UNIPLAY series boasts a 7" colour display.

HMI

Highlights

  • Single point HMI programming inside Motion Perfect
  • Centralised program / HMI screen storage in Motion Perfect project
  • Easily display any controller data type + graphics
  • No need to separately program HMI panel
  • 7" UNIPLAY sealed touch panel
  • Connect up to 2 HMI's to your Motion Coordinator
  • Ethernet connection reduces wiring

Plug and Play

The UNIPLAY range has built-in power isolation technology making it more reliable in noisy environments.

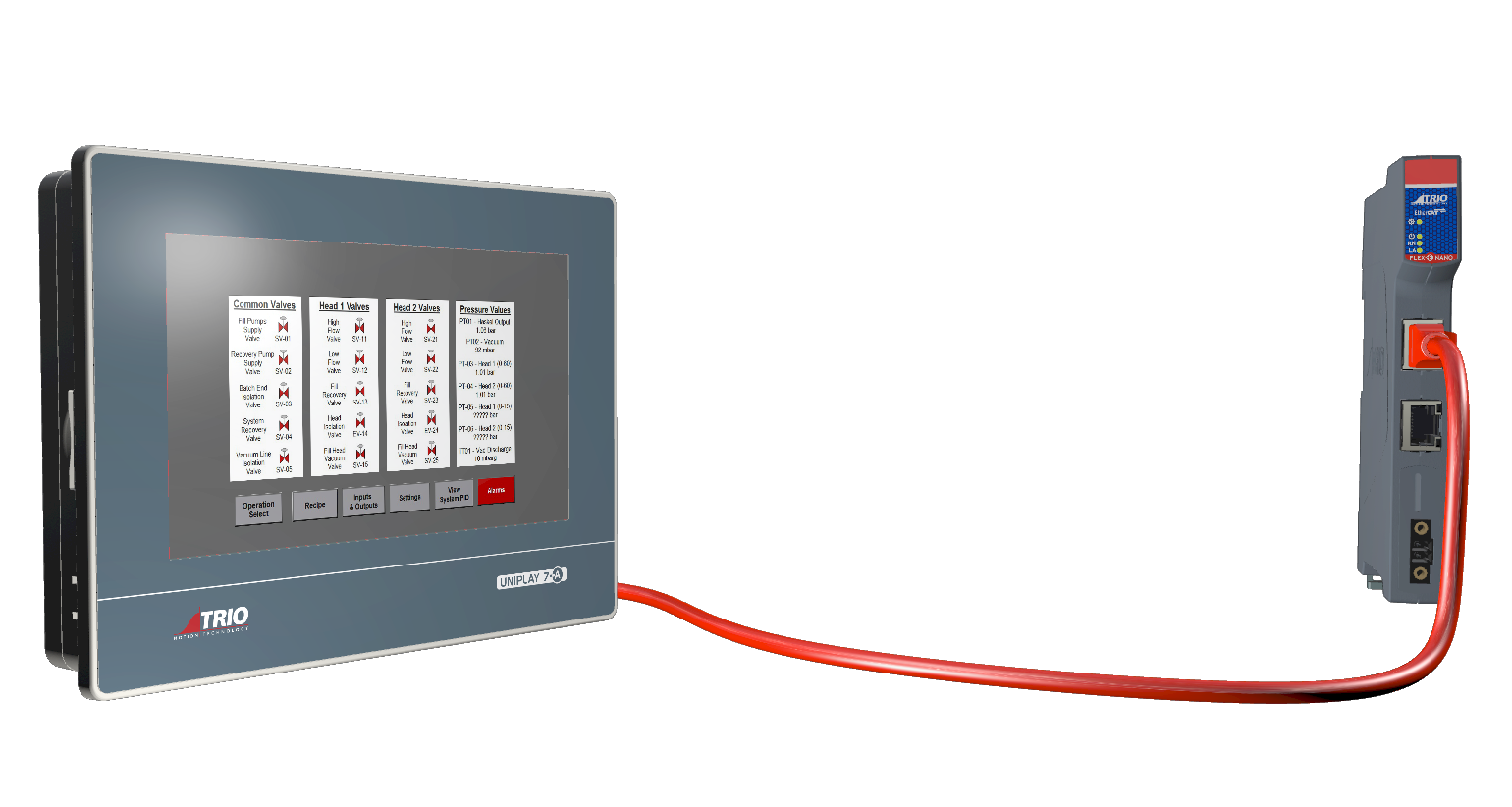

No additional software is required; UNIPLAY HMI's work with the Trio 4xx and above Motion Coordinator range. Motion Perfect is used to create operator HMI screens which are transferred to the UNIPLAY HMI by the Motion Coordinator at runtime.

HMI
  UNIPLAY 7-A
Part Number P561
Processor 32bit RISC CPU 600MHz
Display Size 7" TFT LCD
Brightness 450 cd/m2
Colours 24-Bit
Contrast Ratio 500:1
Resolution 1024 x 600
Ethernet Port 1 x 10/100 Base-T
Memory Flash Storage: 128MByte
RAM: 128Mbyte
Power 24Vd.c.+-20%
Max Power Consumption ~300mA@24Vd.c.
Module Size (H x W x D) 200 x 145 x 34mm
Weight 0.56kg
Panel Cut-out Dimensions 192 x 138mm
CE marked for EMC Yes
RoHS Compliant

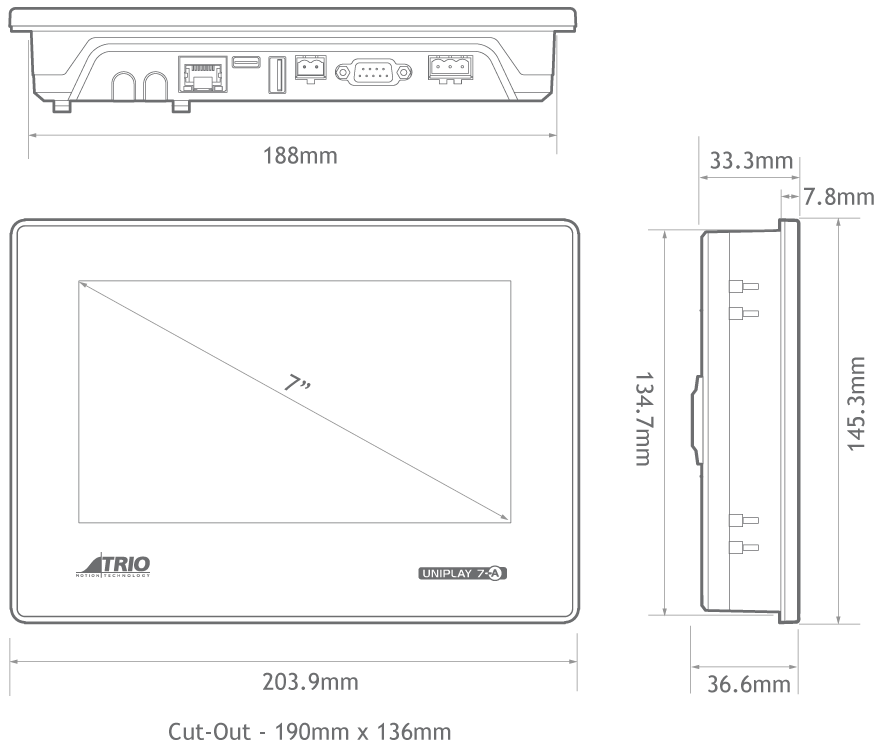

HMI 7-a AND 7-a

All dimensions accurate to +/-0.3mm

Guides
Uniplay User Manual Selection, wiring and setup manual
Uniplay Upgrade guide FAQ's and upgrade path for UNIPLAY HMI
EMC Guide Electromagnetic Compatibility guide for Trio products v4
Certificates
EU Declaration P561
CAD Data
Drawings are available in the following formats: DXF, IGES, DWG, STEP and OBJ. These files are included in the Zip file below.
HMI 7-A" - Download Zip file
